These instructions apply to the Hyundai i20 Mk3 (BC3) 2020-Present.
For other models, please choose your vehicle here.

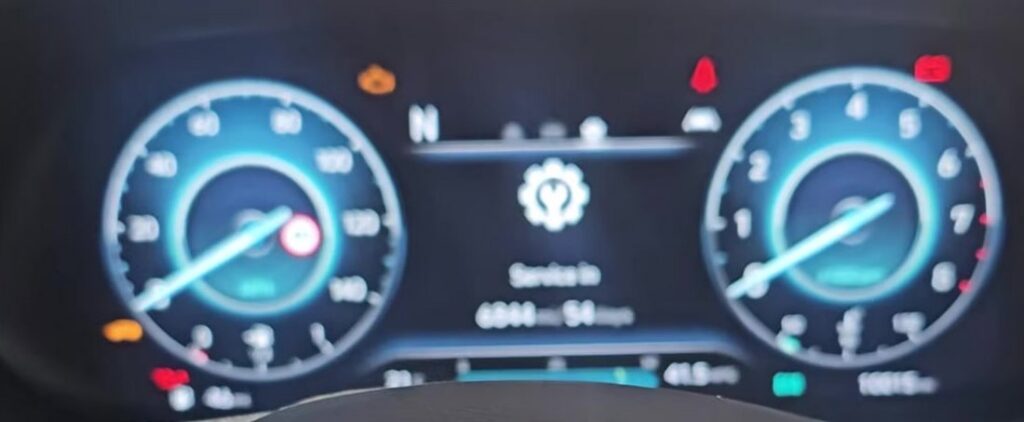

When the spanner (service) symbol or a “Service Required” message lights up in your Hyundai i20 Mk3 (BC3, 2020–present), it means the service interval has elapsed. After the work is done you clear it from the cluster’s User Settings menu in a few seconds — no tools, no dealer visit.
What the Service Indicator Means
The service indicator on the third-generation i20 is a maintenance reminder, not a fault light. The car counts down a Service Interval based on the distance you drive and the time that passes, and when that interval runs out it shows the spanner symbol or a “Service Required” message at start-up to prompt a routine service. It has no way of knowing whether the oil has been changed — it simply tracks the interval — so the reminder stays on the display until you reset it through the menu.
That means the light appearing is normal and expected; it does not indicate a problem with the engine. It is the same prompt whether the car is freshly serviced or overdue. A separate, clearly-lit warning symbol — the amber engine-management light, a red oil-pressure or temperature light, the battery/charging symbol — is a different matter: that is a genuine fault and will not clear with the service-interval reset.
First, a Few Checks
Only reset the indicator once the service has actually been done; clearing it early just hides the reminder while the oil and filters keep ageing.
Set the car up before you open the menu:
- Finish the service first — oil, filter and anything else due — so the new interval starts from fresh oil.
- Park safely with the handbrake on, on level ground.
- Ignition on, engine off. Press the Start button without your foot on the brake (or, with a key, turn to the ON position) so the cluster powers up without the engine running.
- No tools needed — everything is done from the instrument-cluster menu with the steering-wheel buttons.
How to Reset the i20 Mk3 Service Indicator
- Turn the ignition on (engine doesn’t need to be running).
- Press the ‘MENU’ button on the steering wheel repeatedly until ‘User Settings’ appears.
- Scroll to and select ‘Service Interval’ (it may sit under a Service/Convenience sub-menu).
- Select ‘Reset’, then confirm ‘Yes’.
- The interval resets to the full distance and the spanner clears.
The step that catches people out is the ‘Yes’ confirmation — the i20 asks you to confirm before it clears the counter, and scrolling past or leaving the menu without confirming leaves the reminder in place. Hold the selection long enough for the menu to respond and make sure the confirmation actually registers.
If the Reminder Comes Back
If the spanner is still there after you switch off and on again, work through these before assuming a fault:
- It reappears at start-up — the reset wasn’t confirmed; repeat and select Reset, then Yes.
- You’re in the wrong menu item — make sure you selected ‘Service Interval’ under User Settings, not a trip or display item.
- Wrong ignition state — if the engine started, switch back to ignition-on with the engine off and retry.
- Cycle and repeat — turn everything off, wait a few seconds, power the cluster back up and run through the menu once more.
- A separate warning light is on — that’s a fault, not the service timer, and won’t clear this way.
Once the Reset Is Done
Once you confirm ‘Yes’, the Service Interval jumps back to the full distance and the spanner symbol clears immediately. The setting is saved straight away, so the reminder should stay off through the next start-up and won’t return until the new interval has been used up. If the cluster is clean at the next start-up, the reset has worked and there is nothing else to do.
Reset Frequency
Reset the indicator once after each service, right after the oil and filter change, and not before. The i20 Mk3 tracks the interval by both distance and time, so a car doing mostly short trips can trip the reminder on time rather than mileage — that is normal. For the exact service interval that applies to your engine and driving conditions, follow the schedule in your owner’s handbook rather than relying on a remembered figure.
Frequently Asked Questions
Does the engine need to run to reset the i20 service light?
No — ignition on with the engine off is enough.
Where is the Service Interval option?
In the cluster’s User Settings menu, reached by pressing the steering-wheel MENU button repeatedly; it may sit under a Service or Convenience sub-menu.
Do I need a diagnostic tool?
No — the reset is done entirely from the instrument-cluster menu with the steering-wheel buttons.
Will resetting affect anything else?
No — it only restarts the service-interval countdown and leaves your other settings alone.
The light stays on after resetting — why?
If it’s the spanner, the reset wasn’t confirmed — repeat and select Reset, then Yes. A different warning symbol is a fault that needs diagnosis.
Is the reset the same on the i20 N Line and hybrid?
Yes — the User Settings → Service Interval reset is the same across i20 Mk3 versions; only trim-specific menu wording may differ slightly.
If a warning light appeared with the service message, look it up on autodtcs.com. After battery work, see our i20 Mk3 battery guide.
Independent guide — not affiliated with Hyundai. Always follow your official service manual and safety precautions. Read our full disclaimer.
