Replace the Key Fob Battery

If the remote on your Jeep Cherokee KL (2014–2023) — the modern unibody Cherokee, not the old boxy XJ — only locks the doors when you stand right next to it, flashes weakly, or has stopped responding altogether, the coin cell inside it has almost certainly gone flat. The KL shipped with two very different keys depending on trim: a folding “flip” fobik (FCC ID GQ4-53T) on Sport and Latitude trims, and a smart proximity fob (FCC ID M3N-40821302) with Keyless Enter-N-Go on Limited, Trailhawk and Overland. Both take the same battery but open differently, so it helps to know which one is in your hand before you start. Here is the exact procedure for each, how to tell a dying cell from a real fault, and why cutting a brand-new key is the one part you can’t finish at home.

How to Tell the Fob Battery Is Dying

• Shrinking range. You have to be almost touching the Cherokee before it locks or unlocks — the classic first sign of a weak cell.
• Push-button start gets fussy. On Keyless Enter-N-Go models the car may not sense the fob in your pocket, so it won’t unlock on a door-handle touch or start on the first press of the button.
• A “Key Fob Battery Low” message. The KL’s instrument-cluster display shows a low-key-battery warning when the smart fob voltage drops.
• The LED stops flashing. If the little indicator on the flip fob no longer blinks on a button press, that points at the key rather than the car.
• Cold-morning dropouts. A cell that is nearly done struggles in low temperatures, so intermittent response in winter is a common tell.

A CR2032 in a Cherokee remote usually lasts two to four years. If yours is older than that and doing any of the above, fit a fresh cell before you start suspecting the receiver or the immobiliser.

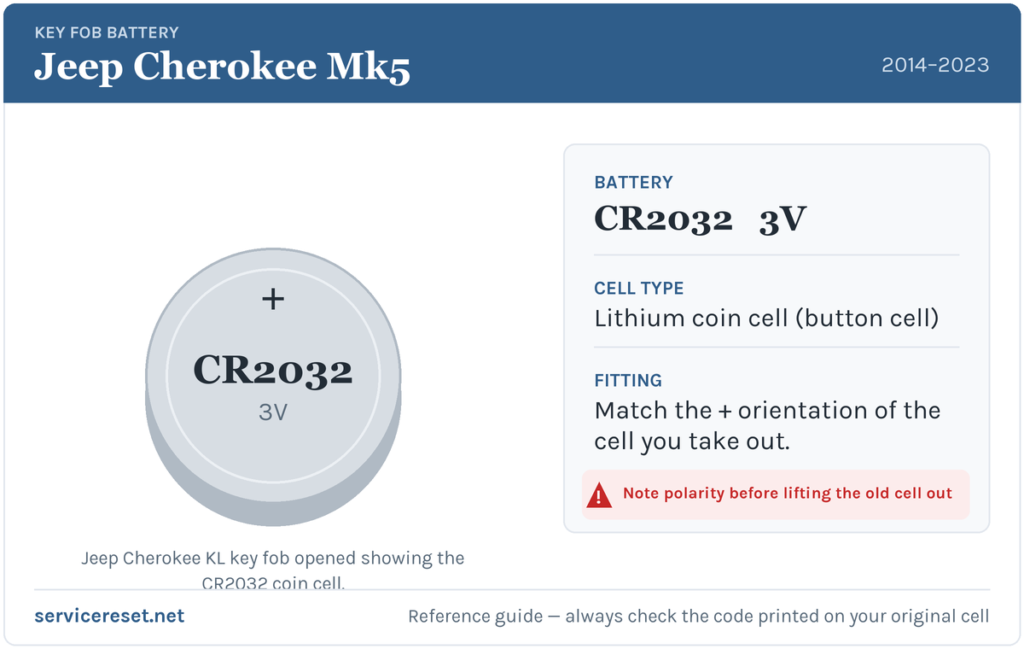

The Battery You Need

Both the flip fobik and the smart proximity fob on the KL Cherokee use a single CR2032 — a 3-volt lithium coin cell, 20 mm across and 3.2 mm thick, sold in any supermarket, hardware shop or pharmacy. It is the most common fob battery there is. One thing worth clearing up: some newer Jeep smart keys (the Grand Wagoneer and the larger Cherokee L, on a different platform) switched to a CR2450. That does not apply to the 2014–2023 KL Cherokee — yours is a CR2032. If in doubt, the safest rule is always the same: read the code printed on the cell you take out and buy the identical one. Choose a good branded cell; cheap coins sag under the brief current spike the transmitter draws and can give poor range even when brand new.

Method 1 — Folding “Flip” Fobik (Sport / Latitude)

1. Fold the metal blade closed so the fob is easier to grip.
2. Find the seam next to the keyring loop. Slide a small flat-blade screwdriver or a plastic pry tool into that seam and twist gently to pop the two halves apart. There is no screw — the KL fobik simply clips together.
3. Note which way the old cell sits, then lift it out. The new CR2032 goes in positive (+) side up.
4. Press the halves back together until they click all the way round, then test every button.

Method 2 — Smart Proximity Fob (Limited / Trailhawk / Overland)

1. Release the emergency blade first. Press the small catch on the side of the fob and pull the mechanical key straight out — this exposes the pry slot.
2. Insert a plastic tool (or the emergency blade itself) into the slot the key left behind and gently work the two halves apart. Take it slowly so you don’t crack the case.
3. Ease out the old cell and drop in the new CR2032 positive (+) side up, matching the orientation you just removed.
4. Snap the case back together and slide the emergency blade home until it latches.

⚠️ Match the polarity. A coin cell fitted the wrong way round makes no contact — and on some fobs a reversed cell can slowly discharge and leave the key dead — so always copy the way the old battery was sitting before you prise it out.

Make Sure It Took

Stand back a few metres and lock, then unlock, the Cherokee. Full range should return straight away. On a Keyless Enter-N-Go model the “Key Fob Battery Low” message clears once the car next reads a healthy fob — sometimes after a single drive cycle rather than the very instant you close the door.

If a Fresh Cell Doesn’t Fix It

• Re-seat the battery. It must sit flat under its clip with the ‘+’ facing up and firm contact all round — a loose or upside-down cell is the single most common cause of “the new battery didn’t work”.
• Clean the contacts. Finger grease or light corrosion on the terminals is enough to cause dropouts; wipe them with a dry cloth.
• Try the door-handle touch and the backup start. If passive entry is patchy, hold the fob right against the start button to start the car (see the next section) — that confirms the fob is being read even with a marginal cell.
• Rule out the car’s 12 V battery. A weak main battery can make a Cherokee slow to wake and mimic a key fault. If the car itself is sluggish to respond, that’s worth checking before you condemn the fob.

New Key or Spare — Why It’s a Dealer Job

Changing the cell leaves the fob’s coding untouched, so no reprogramming is needed after a battery swap. A new key is a different matter: the KL’s mechanical blade has to be cut to the car, and the fob’s transponder (a HITAG 2 / ID46 chip on the smart keys) must be paired to the vehicle’s immobiliser with a diagnostic tool tied to the VIN. FCA smart fobs cannot be self-programmed at the kerb, so adding a spare or replacing a lost key means a Jeep dealer or an auto-locksmith. The cheap insurance is to keep the battery in your spare fresh too — then you’re never down to one working key.

Frequently Asked Questions

What battery does a Jeep Cherokee KL key fob take?

A single CR2032 3-volt lithium coin cell. That’s the same battery whether you have the folding flip fobik or the smart proximity fob.

Is it a CR2032 or a CR2450?

On the 2014–2023 KL Cherokee it’s a CR2032. The CR2450 is used on newer, larger Jeeps such as the Grand Wagoneer and the Cherokee L, which are a different platform — don’t let a listing for those mislead you. Always confirm against the cell you remove.

Which way up does the battery go?

Positive (+) side up on both the flip and the smart fob. Glance at the old cell before you lift it out and copy that orientation exactly.

Do I need to reprogram the fob after changing the battery?

No. A battery swap doesn’t touch the fob’s coding, so it works the moment you reassemble it. Only a brand-new key needs cutting and programming.

How long should a Cherokee key battery last?

Usually two to four years. Leaving a keyless fob sitting close to the car so it wakes constantly, or heavy use of the remote, shortens that.

Can I still start the Cherokee if the fob battery is dead?

Yes. Use the emergency blade hidden in the fob to unlock the driver’s door, then — on Keyless Enter-N-Go models — hold the fob flat against the START/STOP button and press it. The car reads the fob through direct contact even with a flat cell, so a dead battery won’t strand you.

If your remote died suddenly right after the car’s 12 V battery was disconnected — rather than fading over weeks — the cause is more likely a pairing or electrical hiccup than the coin cell, and the immobiliser may have logged a fault. You can look up what a stored code means on autodtcs.com.
