Reset the Service Indicator

Last updated: May 17, 2026

The Vauxhall Corsa F (P2JO, 2019–present) — the sixth-generation Corsa supermini, the first built on the Stellantis (PSA) EMP1 platform rather than the previous GM Gamma-2, manufactured in Zaragoza (Spain) for European sale, sold across pre-facelift (2019–2023) and facelift (2023–present) variants with PSA-sourced engines covering 1.2 (EB2FAD/EB2FAMD, 55 kW naturally aspirated petrol), 1.2 Turbo 100 / 130 (EB2ADTD/EB2ADTS/EB2LTEDH2, 74–96 kW PureTech turbo petrol), 1.5 Diesel (DV5R, 75 kW, 2019–2022), the 100% electric Corsa-e (eCMP platform, 100/115 kW, 2020+), and the Corsa-e GS Line — uses Vauxhall’s SET/RESET button on the wiper stalk, the standard PSA reset method shared with the Peugeot 208 II and Citroën C3 Mk3. No diagnostic tool needed, no menu navigation — single-button procedure, simplest in the round.

When to Reset the Service Indicator

• After completing an oil and filter change.
• If the spanner / maintenance-key icon with a “Service” message appears at startup.
• After a scheduled inspection service.

For Corsa-e (electric): the same procedure resets the dealer-service interval counter, even though there’s no engine oil to change. The Corsa-e tracks brake fluid, micro-filter, and HV battery items on a separate dealer schedule.

Before You Start

• Park on a level surface with the engine off.
• Complete the actual oil and filter change before the reset.
• Locate the SET/RESET button — on the right-hand wiper-control stalk, near the top, often marked with a “0/SET” or wrench icon. (Pre-Stellantis Corsa D and E had cluster-side buttons; the Corsa F moved to the PSA stalk-button convention.)
• For keyless / KESSY cars: have the key fob in the cabin, foot off the brake.

Tools and Supplies

None for the reset itself. For an oil change, fresh PSA-spec oil — 0W-20 ACEA C6 / PSA B71 2312 (FE) for the 1.2 PureTech engines (this is a tight PSA spec; using a non-B71-2312 oil voids the algorithm); 0W-30 ACEA C2 / PSA B71 2290 for the 1.5 DV5R diesel; 5W-30 ACEA C3 / B71 2290 is acceptable for older 1.2 PureTech if 0W-20 isn’t available. A new cartridge filter (top-mounted housing on the 1.2 PureTech — 27 mm hex on the cap); sump-plug torque 20 Nm. Capacity: 1.2 PureTech takes 3.5 L with filter; 1.5 Diesel takes 4.0 L. The Corsa-e has no engine oil — its single-speed reduction gear oil is a dealer-interval item at very long intervals.

The Service Reset Procedure

1. Turn the ignition OFF. (Cars must be fully off before starting — not just in ACC.)
2. Press and hold the SET/RESET button on the right-hand wiper-control stalk.
3. While still holding the button, turn the ignition ON. (For push-button start: press START once without depressing the brake.)

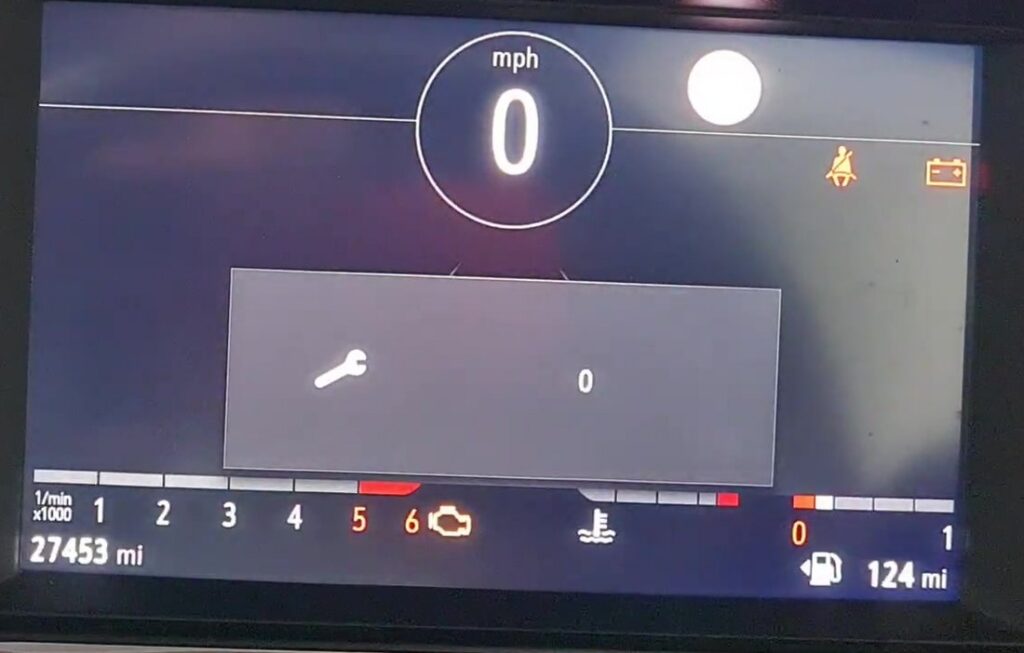

4. The cluster will display the maintenance key icon and a reset indicator countdown (a numeric value descending from the current service-distance to zero).
5. Keep the SET/RESET button pressed throughout the countdown.
6. Continue holding until ‘=0’ appears on the cluster display. The maintenance key icon will disappear at this point.
7. Release the SET/RESET button.
8. Turn the ignition off. Reset complete.

Verify the Reset Worked

Switch the ignition off, wait 30 seconds, then cycle back on. The maintenance-key icon that was appearing at startup should be gone. The cluster’s service-distance readout (under the trip menu) should now show the fresh full interval. Typical P2JO Corsa intervals:

• 1.2 PureTech petrol (75 / 100 / 130 PS): 12,500 miles (20,000 km) or 24 months — PSA’s standard long-life schedule.
• 1.5 Diesel (DV5R): 16,000 miles (25,000 km) or 24 months — PSA’s diesel long-life.
• Corsa-e (Electric): dealer inspection schedule — typically 16,000 miles or 24 months for the HV system check; no engine-oil component.

UK severe-service / short-trip driving will count down faster — most UK Corsas signal at 10,000–14,000 miles in real use. The DV5R diesel particularly benefits from a shorter interval in urban use because the DV5R is prone to oil dilution from short trips with no DPF regen.

Troubleshooting

• The ‘=0’ value doesn’t appear after the countdown finishes. The button was released too early. Restart from step 1 — the button must be held continuously from before the ignition turns on until ‘=0’ shows.
• The maintenance-key icon doesn’t appear when the ignition turns on. Either (a) the service interval isn’t due yet — the procedure still works but there’s nothing to reset; or (b) you missed the button hold before ignition-on. Start completely off, button held, then ignite.
• The reset takes but the warning returns at the next start. 12V battery condition — the Corsa F’s cluster is sensitive to weak 12V (especially on Start-Stop AGM cars). Load-test; replace if older than 5 years. The Corsa-e’s 12V auxiliary (under the boot floor) ages similarly.
• 2023 facelift Corsa F — anything different? The 2023 facelift updated the front-end “Vauxhall Vizor” styling and revised the infotainment, but kept the cluster electronics and SET/RESET button unchanged. Procedure unchanged.
• Corsa-e (Electric) — same procedure? Yes. The Corsa-e uses the same cluster and SET/RESET button. The reset zeros the dealer-service interval counter even though there’s no engine-oil item to change.
• I have a Corsa F GS Line / Ultimate trim with the larger cluster screen — same procedure? Yes. Higher trims have the larger MID screen but the SET/RESET button on the stalk and the reset path are identical across trims.
• I think the Corsa F is a rebadged Peugeot 208 — does that matter? It’s not a direct rebadge, but the platform (EMP1 / CMP), engines (PSA EB2 PureTech), and reset method ARE shared. The Peugeot 208 Mk1 (2012–2019) on the older PSA platform uses a similar method; the current 208 II (2019+) uses an identical SET/RESET stalk-button method.

Frequently Asked Questions

What does the maintenance-key icon on the Corsa F mean?

The maintenance-key icon (sometimes shown as a small wrench or spanner) is the service-distance reminder. It does not indicate an engine fault — that’s a separate yellow CEL / amber engine-check warning.

Do I need a diagnostic tool?

No. The SET/RESET stalk-button method works on every Corsa F trim and powertrain. Vauxhall’s dealer scan tool and aftermarket PSA-aware tools can also reset via OBD-II but they’re not needed.

Does the reset clear engine fault codes?

No. The reset zeros the service-distance counter only. Engine fault codes need a scan tool. For DTC interpretation see autodtcs.com.

Why does the Corsa F use a different procedure to the Corsa D?

The Corsa F is the first Corsa built after the GM-to-PSA-then-Stellantis transition. The Corsa D (2006–2014) was built on the old GM Gamma platform with the GM “Oil Life System” reset (similar to the Astra J). The Corsa F inherited the PSA platform, engines, and reset method when Vauxhall moved into the PSA family.

Is the procedure the same as the Peugeot 208 II?

Yes. The Corsa F and current Peugeot 208 II (2019+) share the PSA CMP/eCMP platform, PSA PureTech engines, and the SET/RESET stalk-button method. The procedure is identical, just on the differently-trimmed wiper stalk.

How often does the Corsa service indicator come up?

Vauxhall’s UK schedule for the Corsa F is 12,500 miles (20,000 km) or 24 months on the 1.2 PureTech petrol, 16,000 miles (25,000 km) or 24 months on the 1.5 Diesel. Severe-use halves the interval. Corsa-e uses a separate 16,000 miles / 24 month dealer-inspection schedule without an engine-oil component.

For DTC code interpretation on Vauxhall vehicles see autodtcs.com.
