These instructions apply to the Chevrolet Captiva (C140) 2011-2018. For other models, please choose your vehicle here.
Last updated:
If the key fob on your Chevrolet Captiva (C140, 2011–2018) has gone weak or the locking has become intermittent, the coin cell inside is almost certainly flat. It’s a quick swap — and if you have two working keys, you can register a spare yourself.
Battery First — What You Need

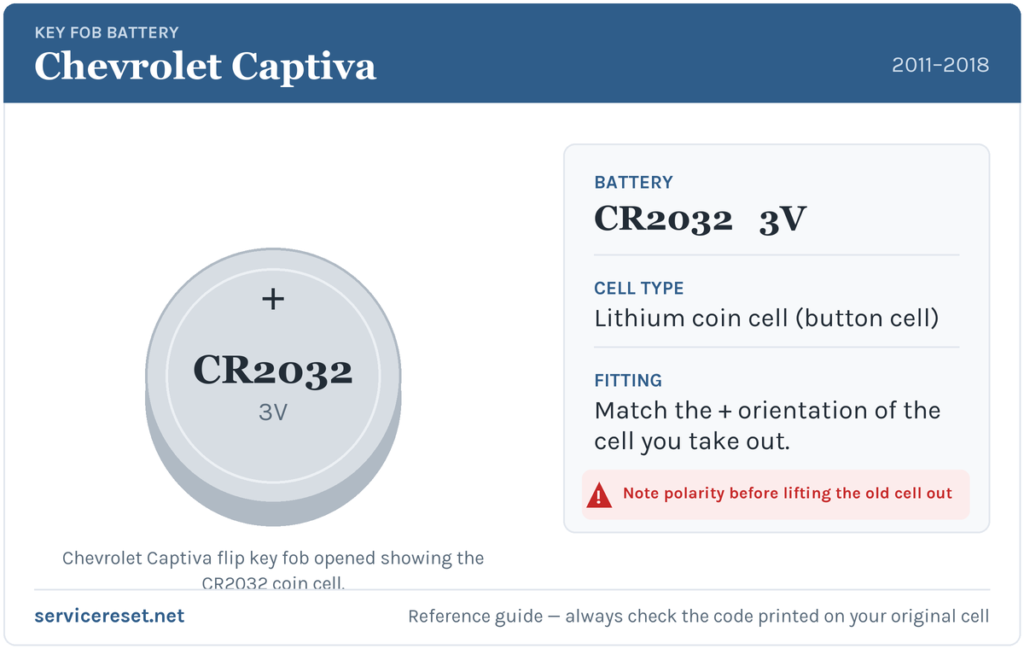

- A CR2032 coin cell (check the marking on the old one).
- A small flat screwdriver.
Replacing the Cell
- Split the key/fob cover to expose the cell.
- Renew the button cell — observe the polarity and don’t touch the circuit board.
- Reassemble and check the remote locks and unlocks the car.
Programming a Spare Key Yourself
With two already-programmed keys you can register another without a tool (up to 10 keys total):
- Insert the first programmed key, ignition on, then off, and remove it.
- Insert the second programmed key, ignition on, then off, and remove it.
- Within 10 seconds, insert the new key and turn the ignition on — it’s registered.
With only one key, a dealer must order and code the replacement.
If a Fresh Cell Doesn’t Help
- Check the polarity — an upside-down cell won’t work.
- Still intermittent? A receiver fault can store a code — look it up on autodtcs.com.
Frequently Asked Questions
What battery does the Chevrolet Captiva key use?
A coin cell, typically a CR2032 — confirm against the old one.
Can I program a new Captiva key myself?
Yes, if you already have two working keys — otherwise a dealer must code it.
Do I need to reprogram after a battery swap?
No — the coding is kept for a battery change.
How many keys can be programmed?
Up to 10 in total.
If the fob stopped working after a battery disconnection, see our Captiva battery disconnect/reconnect guide.
