Reset the Service Indicator

The first-generation Opel Zafira A (also sold as the Vauxhall Zafira A in the UK, T98 chassis, 1999–2005) tracks scheduled service via the InSP (Inspection Service) reminder on the instrument cluster. After an oil change or other scheduled maintenance task, the reminder needs a manual reset using the cluster’s mode button — no scan tool, no Tech 2, no diagnostic socket needed. The procedure uses a specific ignition + button-hold sequence that takes about 30 seconds.

Before you start

The Zafira A’s service-interval system on this generation tracks elapsed time, mileage and engine duty cycle, then displays the InSP indicator when the next service is due. The system is interval-based; it has no oil-quality sensor. Resetting zeroes the counter — it does not detect whether oil was actually changed. Do the reset only after completing the service, never before.

• Procedure applies to all Zafira A trims from 2001 to 2005: 1.6 8V, 1.6 16V, 1.8 16V, 2.0 DTI, 2.0 DTL, 2.0 OPC, 2.2 16V. Pre-2001 cars used a slightly different reset variation (longer button hold and no “INSP” intermediate display).

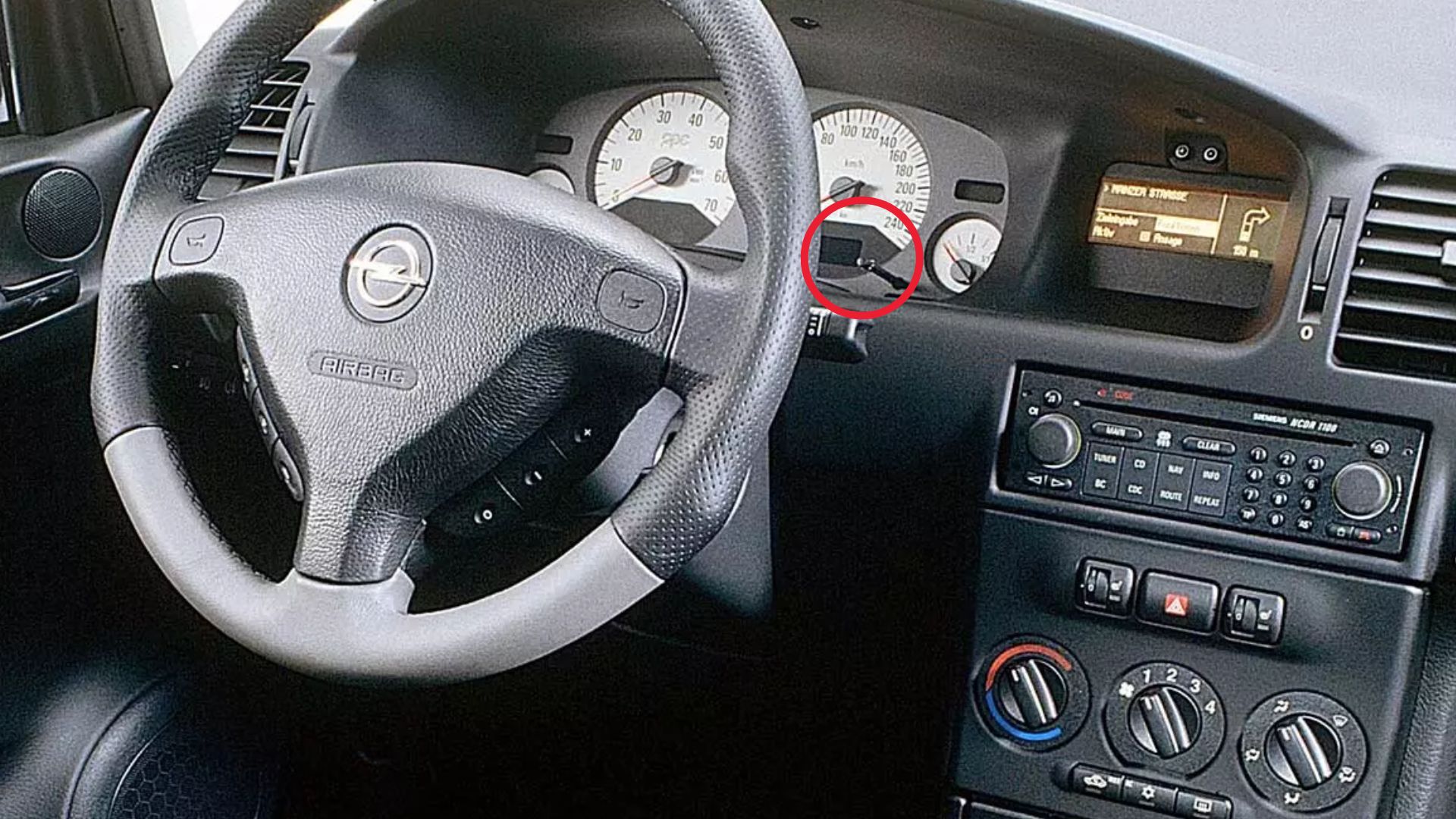

• The reset button is on the instrument cluster — the small knurled stalk on the right side of the cluster face, or a discrete push-button on later facelift cluster variants. Owners sometimes confuse this with the trip-meter reset, which is a separate stalk on the steering column. The cluster reset button is what’s needed for this procedure.
• Battery voltage matters slightly. A weak battery can cause the cluster to enter a different self-test mode on power-up. If your battery is older than 5 years, run the engine for 5 minutes before the reset.
• Don’t start the engine during the reset — the cluster needs ignition position II only.

Tools required

None.

Reset procedure

1. Switch the ignition ON without starting the engine. All warning lights illuminate briefly, then settle to normal idle state.
2. Scroll through the display menu using the cluster controls until the mileage or temperature screen appears. This step “wakes” the service-interval menu within the cluster firmware.
3. Switch the ignition OFF. Wait 2 seconds.
4. Press and hold the reset button on the instrument cluster. Use firm pressure; the button has a positive click.
5. While still holding the button, switch the ignition ON (key to position II — do not crank the engine).
6. Keep the button pressed for at least 10 seconds. Don’t release early.
7. The display will show “INSP” after about 5–7 seconds. Continue holding.
8. Continue holding the button until the display changes to “—-“ (four dashes). This is the confirmation that the service counter has been reset.
9. Release the button.
10. Switch the ignition OFF, then back ON to verify the InSP indicator is gone.

How to verify it has worked

• The InSP indicator is no longer illuminated.
• Cycling through the cluster menus shows a fresh service-interval value (typically 20,000 km or 12 months remaining, depending on engine and dealer settings).
• Starting the engine does not trigger the “service due” chime.

Troubleshooting

“INSP” displays but the dashes never appear. Hold longer — some clusters need 15–20 seconds of held button after “INSP” appears. The transition to “—-” is the genuine reset signal; until that displays, the counter is unchanged.

The cluster enters a different menu (e.g., language selection, temperature units) instead of showing INSP. Wrong button — the cluster reset button is on the cluster face itself, not the trip-meter stalk on the steering column. Trip-meter stalks reset the daily distance only.

Reset works but the indicator returns after a few starts. The cluster lost its reset commit. Always wait 30 seconds with ignition OFF after the reset before turning back ON. If the issue persists, the cluster has a stored fault that needs reading with a Tech 2 / OP-COM clone.

The cluster shows “EE” or another error code instead of “INSP”. Battery voltage too low at the moment of ignition-on. Charge the battery overnight on a smart charger and retry.

Procedure works but no service interval shows after the reset. The cluster has been reset to factory zero — this is fine; the next service interval starts counting up from this point. The display will populate the remaining-distance figure during the next service interval calculation cycle (usually within the first 100 km of driving).

Frequently asked questions

Does this procedure work on the Vauxhall Zafira A (UK)?
Yes. Opel Zafira A and Vauxhall Zafira A are mechanically and electrically identical; only the badge differs.

What about the Zafira A OPC?
The OPC (2.0 turbo) uses the same instrument cluster firmware as the standard Zafira A and follows the same procedure. The cluster face has different graphics but the reset behaviour is identical.

Why does my Zafira A not have a separate reset button on the cluster?
Some early Zafira A cars (1999–2000) used the trip-meter stalk as the reset input rather than a dedicated cluster button. If your car is pre-2001, hold the trip-meter stalk button during step 4–8 instead of looking for a separate cluster button. The “INSP” → “—-” display sequence is the same.

Will this procedure clear any check-engine lights?
No. The service indicator is a calendar/mileage reminder; the check-engine lamp indicates a stored fault in the engine ECU. They are independent. Clearing a check-engine lamp needs a generic OBD-II scanner or a Tech 2.

What service interval does the Zafira A use?
20,000 km / 12 months for petrol variants (1.6, 1.8, 2.0 OPC, 2.2). 30,000 km / 24 months for the 2.0 DTI and 2.0 DTL diesel under “long-life” servicing — but most owners run the diesels on the same 12-month interval to match local good-practice norms.

Can the dealer reset it differently?
Vauxhall and Opel technicians use Tech 2 or GDS to reset, which also logs the service-performed entry against the VIN in the central database. The cluster-button reset is functionally equivalent for the cluster purpose, but doesn’t update the central record.
