Replace the Key Fob Battery

If the remote on your Hyundai Santa Fe Mk4 (TM, 2018–2023) only locks the car when you are standing right next to it, flashes a warning in the cluster, or stops responding altogether, the cause is almost always the small coin cell inside the fob rather than a fault with the car. The fourth-generation Santa Fe is built around a smart (keyless-entry) key with push-button start, and every one of them hides a mechanical emergency blade for exactly the moment the battery gives out. Below is the verified cell it takes, how to spot a dying battery before it strands you, the exact way to split the case, and why a brand-new key — unlike a battery swap — is a dealer or locksmith job.

How to Tell the Fob Battery Is Dying

• Shrinking range. You have to be almost touching the door handle for the car to lock or unlock. This gradual loss of range is the classic first sign of a tired cell.
• A “Key battery low” message. The Santa Fe’s instrument cluster shows a low key-battery warning when the smart key voltage drops, often the clearest early warning you will get.
• Push-button start hesitates. The car may ask you to press the start button again, or prompt you to hold the fob against the button — a sign it can no longer read the key from a normal distance.
• Cold-weather dropouts. A near-flat lithium cell struggles in low temperatures, so intermittent response on frosty mornings often means the battery is on its way out.

A coin cell in a Santa Fe smart key typically lasts two to four years. If yours is older than that and showing any of the above, fit a fresh cell before you start suspecting the receiver or the immobiliser.

The Battery You Need

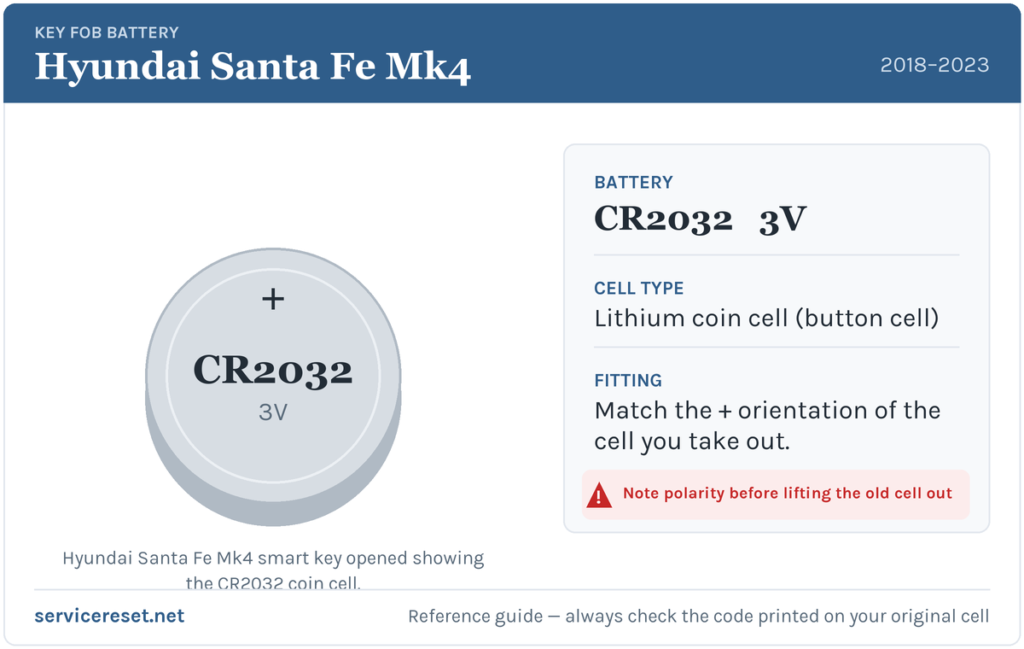

The Santa Fe Mk4 smart key uses a single CR2032 3-volt lithium coin cell. This is confirmed by Hyundai’s own owner literature and is the most common fob battery there is — you will find it in any supermarket, hardware shop or phone-accessory rack. Buy a good-quality branded cell; budget cells can sag under the brief high current the transmitter draws and give weak range even when they read as “new”. Hyundai warns that fitting the wrong type of cell can cause the smart key to malfunction, so stick to a genuine CR2032 rather than a near-size substitute.

Method — Opening the Smart Key

1. Release the emergency blade. Turn the fob over and slide the small latch on the back; the mechanical key blade pops free. Pull it straight out and set it aside — you will use it both as a tool and, in a pinch, to unlock the door.
2. Find the pry slot. Removing the blade exposes a small notch in the seam of the case. Insert the tip of the emergency blade, a small flat-head screwdriver, or a plastic trim tool into this notch.
3. Split the two halves. Twist gently to pop the rear cover away from the body of the fob. Work slowly around the seam if it is stiff — the halves are held by plastic clips, so there is no screw to undo on the smart key.
4. Note the orientation, then lift the cell out. Before you disturb anything, look at which face of the old CR2032 is visible — on this fob the positive (+) face generally sits upward, toward the cover you just removed. Ease the cell out from under its retaining clip.
5. Fit the new cell. Drop the fresh CR2032 in the same way the old one came out, matching that orientation exactly, and press it firmly under the clip so it seats against both contacts.
6. Reassemble. Line up the two halves and squeeze until the clips click all the way round, then slide the mechanical blade back into its slot until it latches.

⚠️ Match the polarity you removed. The safest rule is to copy the exact orientation of the cell you took out — a coin cell fitted the wrong way round will not power the transmitter and can slowly discharge against the contacts. If in any doubt, snap a quick photo before you lift the old cell out.

Confirm It Worked

Stand back a few metres and lock, then unlock, the Santa Fe. Full range should return straight away. Any “Key battery low” message clears once the car next reads a healthy fob — sometimes instantly, sometimes after one drive cycle. Then confirm the engine starts normally with a single press of the start button, without having to hold the fob against it.

If a Fresh Cell Doesn’t Fix It

• Re-check seating and polarity. A cell that is loose under its clip, or fitted the wrong way up, is the single most common reason a “new” battery seems dead. Reopen the fob and make sure it sits flat against both contacts.
• Wipe the contacts. Finger grease or light corrosion on the terminals is enough to cause dropouts; clean them with a dry cloth before deciding the fob has failed.
• Still no response? Try the spare key. If the spare works perfectly, the first fob’s transmitter may have failed — rare compared with a simple flat or upside-down cell. Occasionally a weak car 12 V battery can also mimic key faults, so if the Santa Fe itself is slow to wake, have the vehicle battery checked too.

New Key or Spare — Why It’s a Dealer Job

Changing the battery keeps the fob’s existing coding, so nothing needs reprogramming and the key works the instant you close the case. Cutting or coding a new key is a different matter: a blank smart fob has to be ordered against the car’s VIN and then paired to the Santa Fe’s immobiliser with a diagnostic tool. That puts adding a spare or replacing a lost key firmly in the hands of a Hyundai dealer or an auto-locksmith — so keep the battery in your spare fresh too, and you are never down to a single working key.

Frequently Asked Questions

What battery does a Hyundai Santa Fe Mk4 key fob take?

A single CR2032 3-volt lithium coin cell. It is the same cell across the TM-generation smart keys and is sold almost everywhere.

Which way up does the cell go?

Match the orientation of the cell you remove — on this smart key the positive (+) face generally points up toward the rear cover. Fitting it the wrong way round will leave the fob dead, so photograph the old cell first if you are unsure.

Do I need to reprogram the key after changing the battery?

No. A battery swap doesn’t touch the fob’s coding, so it works straight away. Only a brand-new key needs pairing to the car.

How long should a Santa Fe key battery last?

Usually two to four years. Leaving the fob sitting close to the car, so it wakes and “talks” to the vehicle constantly, shortens that noticeably.

My key still won’t work after a new battery — is the car broken?

Usually not. Re-check the cell’s polarity and seating first, then wipe the contacts. If a known-good cell still gives nothing and the spare key works fine, the fob’s transmitter may have failed — but that is far rarer than a flat or upside-down cell.

Can I start the Santa Fe if the fob battery is completely dead?

Yes. Pull the mechanical blade from the fob to unlock the driver’s door, then, with your foot on the brake, press the engine start/stop button directly with the fob itself. The car reads the passive chip inside the key at close range and starts normally, so a dead cell won’t leave you stranded.

If the remote stopped responding suddenly right after the 12 V battery was disconnected — rather than fading gradually — the trouble is more likely the pairing or a stored fault than the coin cell. You can look up what any logged code means on autodtcs.com.
