Replace the Key Fob Battery

If the remote for your Kia Ceed Mk3 (CD, 2018–present) only works when you are almost touching the door, responds intermittently, or has stopped altogether, the coin cell inside it has almost certainly gone flat. The third-generation Ceed — the hatch, the Sportswagon estate, the ProCeed shooting brake and the GT variants — was sold with two different keys depending on trim: a folding “flip” remote on lower-spec cars and a smart (keyless-entry) fob on higher trims. Both take the same battery, but they open in completely different ways, so it is worth knowing which one you are holding before you start. Here is the exact procedure for each, how to tell a dying cell from a genuine fault, and why a brand-new key is the one job you cannot finish at home.

How to Tell the Fob Battery Is Dying

• Shrinking range. You have to stand right next to the Ceed — or hold the fob against the door handle — for the central locking to respond. This is usually the first sign.
• The remote’s LED stops flashing. On the folding key the little indicator light no longer blinks when you press a button once the cell is too weak — a quick way to confirm it is the fob and not the car.
• A “key battery low” warning. Smart-key Ceed models show a low-key-battery message in the instrument cluster when the fob’s cell is running down.
• Cold-weather dropouts. A cell that is nearly flat struggles most on frosty mornings, so buttons that work by afternoon but not at 7am point to a tired battery.
• Keyless start hesitates. On smart-key cars the engine start button may only react when the fob is very close, or the car may ask you to hold the fob against the start button.

A CR2032 in a Ceed key typically lasts two to four years. If yours is older than that and showing any of the above, fit a fresh cell before you suspect the receiver or immobiliser — a battery swap costs a couple of pounds and rules out the most common cause first.

The Battery You Need

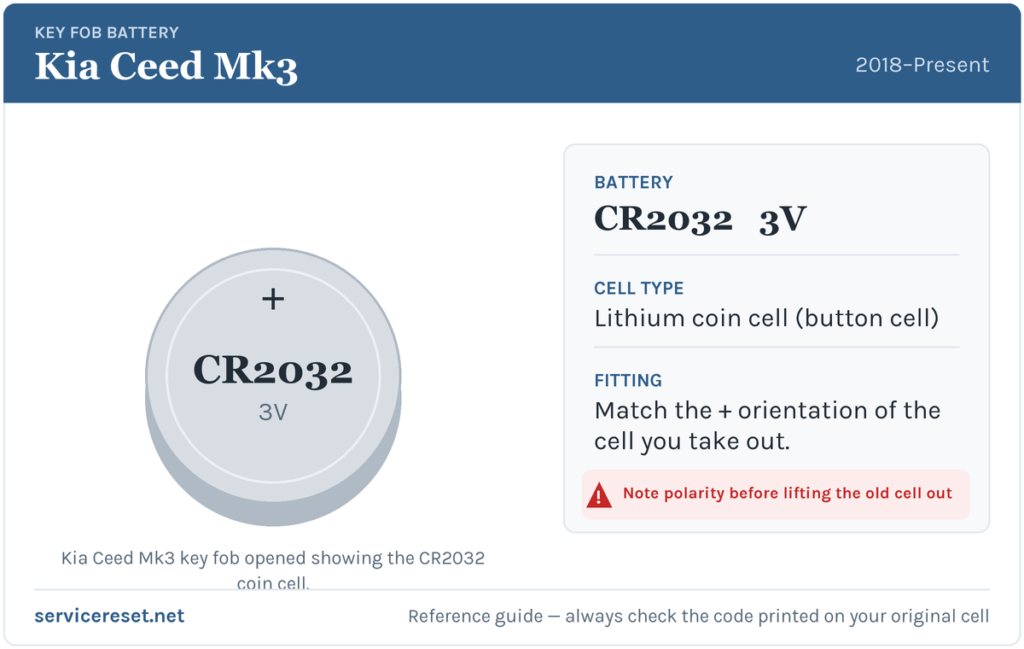

Both the folding remote and the smart key use a single CR2032 3-volt lithium coin cell. It is the most common fob battery there is — you will find it in any supermarket, hardware shop or petrol station. Buy a good-quality branded cell: cheap ones sag under the brief burst of current the transmitter draws and can give short range even when they are fresh out of the packet. Handle the new cell by its edges, because finger grease on the flat faces can weaken the contact.

Method 1 — Folding “Flip” Remote

1. Fold the metal blade closed so the fob sits flat and is easier to hold.
2. Find the narrow seam around the edge of the case. Insert a slim flat tool — a small flat-blade screwdriver or a guitar pick works well — and gently prise the cover apart.
3. If your remote has a small retaining screw holding the battery cover, undo it first with a fine cross-head (Phillips) screwdriver, then lift the cover away.
4. Note which way the old cell sits, then lift it out. On the folding remote the new CR2032 goes in positive (+) side up.
5. Press the cover back on until it clicks (and refit the screw if there was one — snug, not overtightened, as the case is plastic), then test every button.

Method 2 — Smart (Keyless) Fob

1. Release the emergency blade: slide the small catch on the fob and pull the mechanical key blade straight out.
2. Insert a slim flat tool (or the blade you just removed) into the slot the blade leaves behind and gently prise the cover off the smart key.
3. On the Ceed smart key the cell is not exposed straight away — slide out the inner electronic module and turn it over to reach the battery holder.
4. Push the old cell out of its holder, noting exactly which way round it sat. Fit the new CR2032 the same way up as the one you removed — the smart key seats the cell the opposite way to the flip key, so copy the original rather than guessing.
5. Slide the module back into the case, click the cover home and push the emergency blade back in until it latches.

⚠️ Get the polarity right. Kia’s own guidance warns that a cell fitted the wrong way round will quietly discharge itself and can leave the key unusable — so always match the orientation of the cell you took out, especially on the smart fob where the battery faces the opposite way to the folding remote.

Confirm It Worked

Stand back a few metres and lock, then unlock, the Ceed. Full range should return straight away. On a smart-key car the “key battery low” message clears the next time the system reads a healthy fob — sometimes instantly, occasionally after one drive cycle. If keyless start was hesitating, it should now respond from a normal distance without you having to hold the fob against the start button.

If a Fresh Cell Doesn’t Fix It

• Re-check polarity and seating. Fitting the cell upside down — easy to do on the smart key, where it faces the opposite way to the flip remote — is the single most common mistake. The cell must also sit firmly under its clip against clean metal.
• Wipe the contacts. A smear of finger grease or a little corrosion on the terminals is enough to cause dropouts; clean them with a dry cloth before blaming the fob.
• Warning still showing? On some cars the low-key alert only clears once the fob has been read a couple of times, so drive it and re-check. Rarely, a weak car 12 V battery can mimic key faults — if the Ceed itself is slow to wake or the dash flickers on unlock, look at the vehicle battery next.

New Key or Spare — Why It’s a Dealer Job

Changing the cell keeps the fob’s existing coding, so nothing needs reprogramming and the key works the moment you close the case. Cutting or coding a new key is different: the Ceed’s immobiliser has to be accessed with diagnostic equipment, and blank smart fobs must be ordered and coded against the car’s VIN. That makes adding a spare or replacing a lost key a job for a Kia dealer or an auto-locksmith — so keep the battery in your spare fresh too, and you are never down to a single working fob.

Frequently Asked Questions

What battery does a Kia Ceed Mk3 key take?

A single CR2032 3-volt lithium coin cell. The same size fits both the folding remote and the smart keyless fob, so you only need to know one code whichever key your Ceed came with.

Which way up does the battery go?

On the folding remote the cell sits positive (+) side up. The smart key holds its cell the opposite way round, so on that one the safest rule is to fit the new CR2032 the same way as the one you removed. A cell fitted upside down can flatten itself and disable the key.

Do I need to reprogram the key after changing the battery?

No. A battery swap does not touch the fob’s coding, so it works immediately. Only a brand-new or replacement key needs programming to the car.

How long should a Ceed key battery last?

Usually two to four years. Heavy use of the remote, or leaving a smart fob sitting near the car so it wakes constantly, shortens that. Cold weather also brings a tired cell to its knees sooner.

My Ceed key still won’t work after a new battery — what now?

Re-check the cell’s polarity and seating first, then wipe the contacts. On the smart key make sure the inner module went back in fully. If the LED still will not light with a known-good cell, the transmitter itself may have failed and need replacing — but that is rare next to a simple flat or reversed cell.

Can I drive the Ceed if the fob is completely dead?

Yes. Use the mechanical blade hidden inside the fob to unlock the driver’s door. On smart-key cars the keyless system is designed to still start the car with a flat fob battery — typically by holding the fob against the start button — so a dead cell will not strand you.

If your Ceed’s remote stopped working suddenly right after the car battery was disconnected — rather than fading gradually — the cause is more likely a pairing or immobiliser issue than the coin cell, and it may have logged a fault code. You can look up what a stored code means on autodtcs.com.
