These instructions apply to the Mazda CX-30 Mk1 (DM) 2019-Present.
For other models, please choose your vehicle here.
If the smart key for your Mazda CX-30 (2019–present) only locks the car when you are standing right next to it, needs a second press to respond, or has stopped working altogether, the coin cell inside the fob has almost certainly run flat. Every CX-30 — whether it came with the keyless “advanced keyless” smart key or the simpler push-button remote — uses the same slim smart-key housing with a mechanical auxiliary key tucked inside it. Swapping the battery is a five-minute job on the kitchen table once you know the exact cell and the small trick to splitting the two-part case without cracking it. Here is how to tell a dying cell from a real fault, the battery Mazda specifies, and why cutting a brand-new key is the one part you cannot finish at home.
How to Tell the Fob Battery Is Dying
- Shrinking range. You have to be almost touching the door handle before the CX-30 locks or unlocks, or you find yourself pressing the button two or three times. This gradual loss of range is the classic first sign.
- A key-battery warning in the cluster. When the smart key voltage drops, the CX-30 shows a key-shaped low-battery warning in the instrument cluster (and a message in the centre display) the next time it wakes the car. It is telling you to change the fob cell, not the car’s 12 V battery.
- Keyless entry and push-button start get fussy. The car may not detect the key on approach, or you may have to hold the fob against the start button to start the engine — the CX-30’s back-up method for a weak key.
- Cold-weather dropouts. A cell that is already low often fails first on a frosty morning, because lithium coin cells give less current when cold.
A smart-key cell in a CX-30 typically lasts two to three years. Leaving the fob sitting next to the car all day — where it keeps waking to look for the vehicle — runs it down faster. If yours is a couple of years old and showing any of the symptoms above, fit a fresh cell before you suspect anything more serious.
The Battery You Need

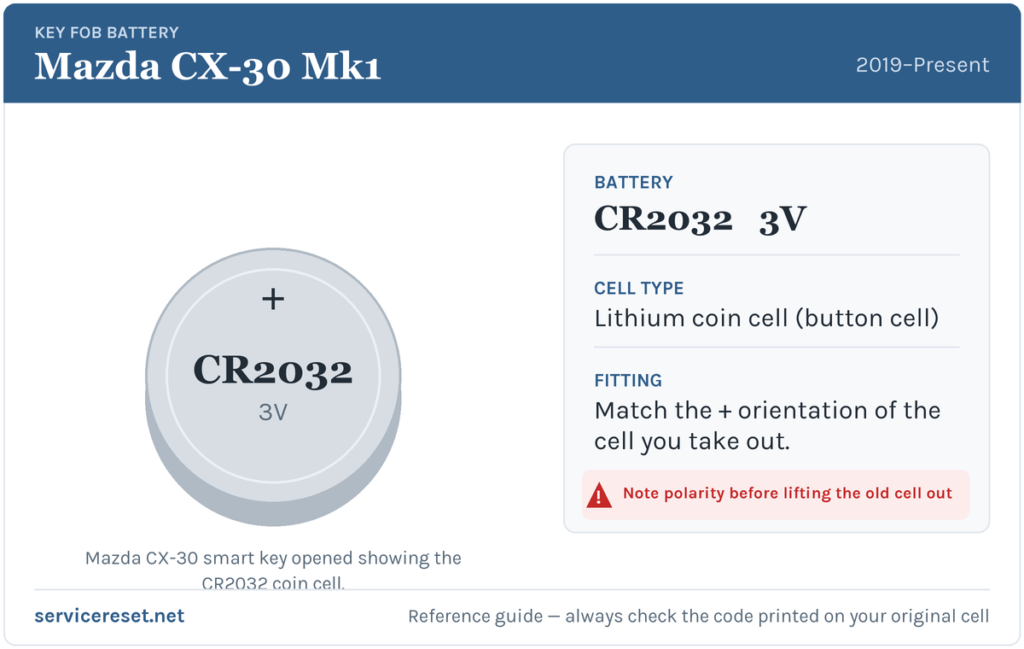

The CX-30 smart key takes a single CR2032 3-volt lithium coin cell. That is the figure printed in Mazda’s own owner’s manual, which says to replace only with the same type (CR2032 or equivalent). It is the most common fob battery made, sold in any supermarket, hardware shop or phone-accessory counter. Buy a fresh, good-quality branded cell — a CR2032 that has sat in a drawer for years, or a bargain-bin one, can sag under the brief high current the transmitter draws and give poor range even though it reads as “new.”
How to Change the CX-30 Smart-Key Battery
- Slide out the auxiliary key first. Press the small release knob on the fob and pull the metal mechanical key straight out of the housing. This exposes the covers you need to open and gives you a clean seam to work with.
- Remove the lower cover. With the auxiliary key out, press the knob in the direction shown on the fob and slide the lower cover off the bottom of the case.
- Unlock and lift the upper cover. Press in the small tab to release the upper cover, then insert a slim flat-blade screwdriver — wrap the tip in tape so it will not scratch or gouge the plastic — into the gap and gently twist to split the two halves apart.
- Lift out the cap and the old cell. Ease the battery cap off with the taped screwdriver, then note which way the coin cell is sitting and lift it out. On the CX-30 the new CR2032 goes in positive (+) side facing up, exactly as Mazda specifies.
- Reassemble in reverse. Refit the cap, click the upper cover back on until the tab latches, slide the lower cover home, and push the metal auxiliary key back into the housing until it clicks. Then test every button.
⚠️ Get the orientation right. Mazda warns that incorrect battery fitting can damage the key. Fit the CR2032 the wrong way up and the fob will not work — and can quietly discharge the new cell — so always match the positive-up orientation of the cell you removed and avoid touching both faces of the new battery with your fingers, which can leave a film on the contacts.
Did It Work?
Stand back a few metres and lock, then unlock, the CX-30 with the buttons. Full range should return straight away. Walk up to the car with the fob in your pocket to confirm keyless entry detects it again, and press the start button to check keyless start. The key-battery-low warning clears on its own the next time the car reads a healthy fob — sometimes after a short drive rather than instantly, so do not worry if it lingers for one cycle.
If a Fresh Cell Doesn’t Fix It
- Re-check the polarity and seating. A CR2032 fitted upside down, or not pressed fully under its contact, is by far the most common reason a “new” battery seems dead. Positive side up.
- Clean the contacts. A smear of finger grease or light corrosion on the terminals is enough to cause dropouts; wipe them with a dry cloth before you blame the fob.
- Try the back-up start. If the engine will not start, hold the fob flat against the push-button start — the CX-30 can read the transponder at close range even with a weak or dead cell, which tells you the transmitter side is the only problem.
- Warning still showing? Give it a drive cycle to clear. If the car itself is slow to wake or the alert persists, a tired vehicle 12 V battery can occasionally mimic key faults — worth checking if the CX-30 has been standing.
New Key or Spare — Why It’s a Dealer Job
Changing the cell keeps the fob’s existing coding, so nothing needs reprogramming and the key works the moment you close the case. Adding a new key is a different story: the CX-30’s immobiliser has to be accessed with Mazda diagnostic equipment, and a blank smart key must be ordered and coded against your car’s VIN, then the mechanical blade cut to match. That makes a spare or a lost-key replacement a job for a Mazda dealer or an auto-locksmith with the right kit — so keep the battery in your spare fresh too, and you are never left relying on a single working key.
Frequently Asked Questions
What battery does a Mazda CX-30 key fob take?
A single CR2032 3-volt lithium coin cell. Mazda’s owner’s manual says to replace only with the same type, CR2032 or equivalent.
Which way up does the battery go?
Positive (+) side facing up. Fitting it the wrong way round stops the fob working and can flatten the fresh cell, so copy the orientation of the one you take out.
Do I have to reprogram the key after changing the battery?
No. A battery swap does not affect the fob’s coding or its pairing to the car, so it works immediately. Only a brand-new key needs programming.
How long should a CX-30 key battery last?
Usually two to three years. Frequent use of the remote, or leaving the smart key sitting close to the car so it keeps waking, will shorten that.
My CX-30 key still won’t work after a new battery — what now?
Re-check that the CR2032 is positive-side-up and seated firmly, then clean the contacts. If the fob still does nothing with a known-good cell, its transmitter may have failed — but that is rare next to a flat or upside-down battery.
Can I still start the car if the fob battery is completely dead?
Yes. Use the mechanical auxiliary key hidden in the fob to unlock the driver’s door, then hold the fob against the push-button start to start the engine. The CX-30 is designed to run with a flat key cell, so a dead battery will not strand you.
If your CX-30’s remote stopped responding suddenly — rather than fading over weeks — and the car is also flagging other electrical warnings, it is worth reading any stored trouble code before assuming it is just the fob. You can look up what a Mazda code means on autodtcs.com.
