Enter the Service Engine Soon Self-Diagnostic Mode

The Nissan Juke (F15) has a built-in Service Engine Soon self-diagnostic mode. Using nothing more than the ignition and the accelerator pedal, you can put the instrument cluster into a hidden test mode and read stored engine trouble codes by watching the Service Engine Soon light flash. Here is the exact sequence.

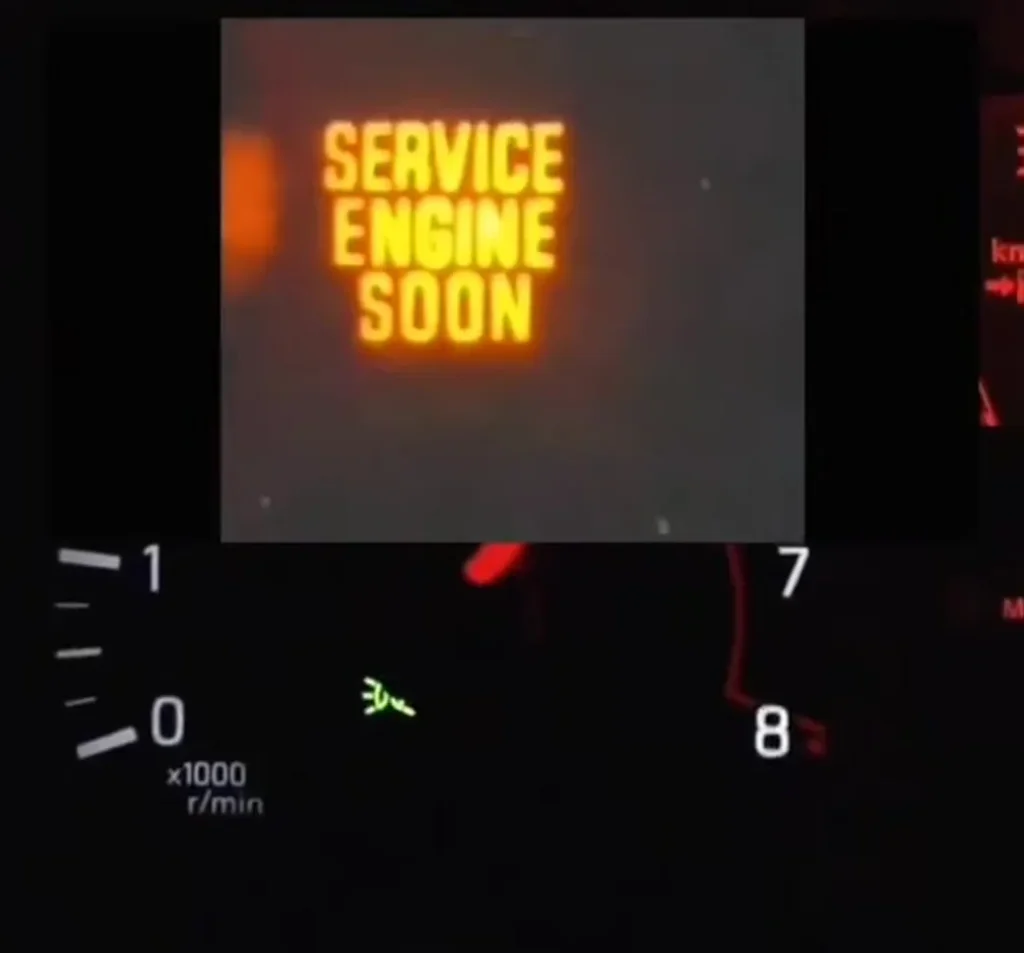

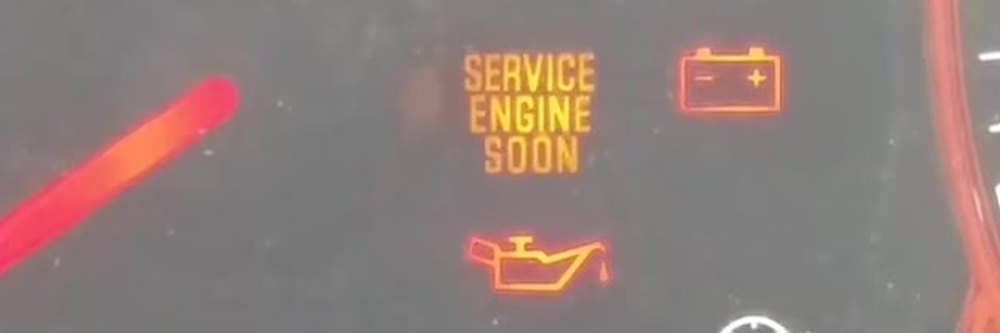

Good to know: on US-market Jukes this warning lamp reads “Service Engine Soon” (the text lamp shown below); on UK and European Jukes it is the amber engine (MIL) symbol instead. The accelerator-pedal self-diagnostic sequence is the same Nissan ECM feature either way.

What the self-test shows

Once the mode is active, the Service Engine Soon (SES) light stops glowing steadily and instead blinks in groups. Each group of flashes, separated by a short pause, spells out a digit of a stored diagnostic trouble code. On the car filmed here the light flashed out code P2A00, an air-fuel ratio sensor circuit fault. You are only reading codes on this screen, so no scan tool is needed to see them.

How to enter the self-diagnostic mode

1. Sit in the driver’s seat and turn the ignition switch to ON (position II). Do not start the engine.
2. Wait about 3 seconds.
3. Within the next 5 seconds, fully press and release the accelerator pedal 5 times.
4. Take your foot off the pedal and wait about 7 seconds.
5. Press the accelerator all the way to the floor and hold it for about 10 seconds, until the Service Engine Soon light begins to flash.
6. Fully release the accelerator pedal. The Service Engine Soon light stays in diagnostic mode and blinks out any stored trouble codes.
7. Watch the light and count the flashes. Each group of blinks, separated by a pause, is one digit of the code. Note the full sequence, then turn the ignition OFF to leave the mode.

If it doesn’t start

Timing is everything. The pedal presses have to fall inside the 5-second and 7-second windows or the cluster ignores them. If the light does not begin to flash, switch the ignition fully OFF, wait a few seconds and start again from step 1, pressing the pedal firmly to the floor each time. Turn the key only to ON and never crank the engine during the sequence.

FAQ

Does this clear the check engine light? No. This mode lets you read the stored codes, but it does not repair the fault. The Service Engine Soon light will come back until the underlying problem is fixed and the code is cleared.

My UK or EU Juke shows an engine symbol, not “Service Engine Soon” – is it the same procedure? Yes. US-market Jukes use the “Service Engine Soon” text lamp, while UK and European cars light the amber engine (MIL) symbol. The accelerator-pedal sequence and the flashing-code readout work exactly the same on both.

What does P2A00 mean? It points to the air-fuel ratio (A/F) sensor circuit. Look up the exact code you read to confirm the fault before replacing any parts.

Do I need any tools? No. The sequence uses only the ignition and the accelerator pedal, so you can read basic codes without an OBD-II scanner.

Why is my Juke’s light not entering test mode? Double-check the exact 3, 5, 7 and 10-second timing. If it still will not enter diagnostic mode, read the codes with an OBD-II scanner on the diagnostic port instead.

Once you have the number the light flashed, look it up to find the fault, since the code will not clear until the problem is fixed. Our sister site autodtcs.com has a full description of every OBD-II trouble code, including the P2A00 air-fuel ratio sensor family.
