These instructions apply to the Suzuki Grand Vitara Mk2 (JB) 2005-2015.
For other models, please choose your vehicle here.
Disconnecting the 12 V battery on the Suzuki Grand Vitara (2005–2015) is a routine driveway job, but it’s worth doing carefully because this generation has stability control and airbags that don’t like a careless power cut. You’ll typically pull the battery when it’s due for renewal, before electrical or bodywork repairs, or when storing the car for a while. Work in the right order, give the electronics time to settle, and the Grand Vitara relearns cleanly — the main things you’ll set again are the clock, the radio, and the steering-angle sensor.
Where the 12 V Battery Is

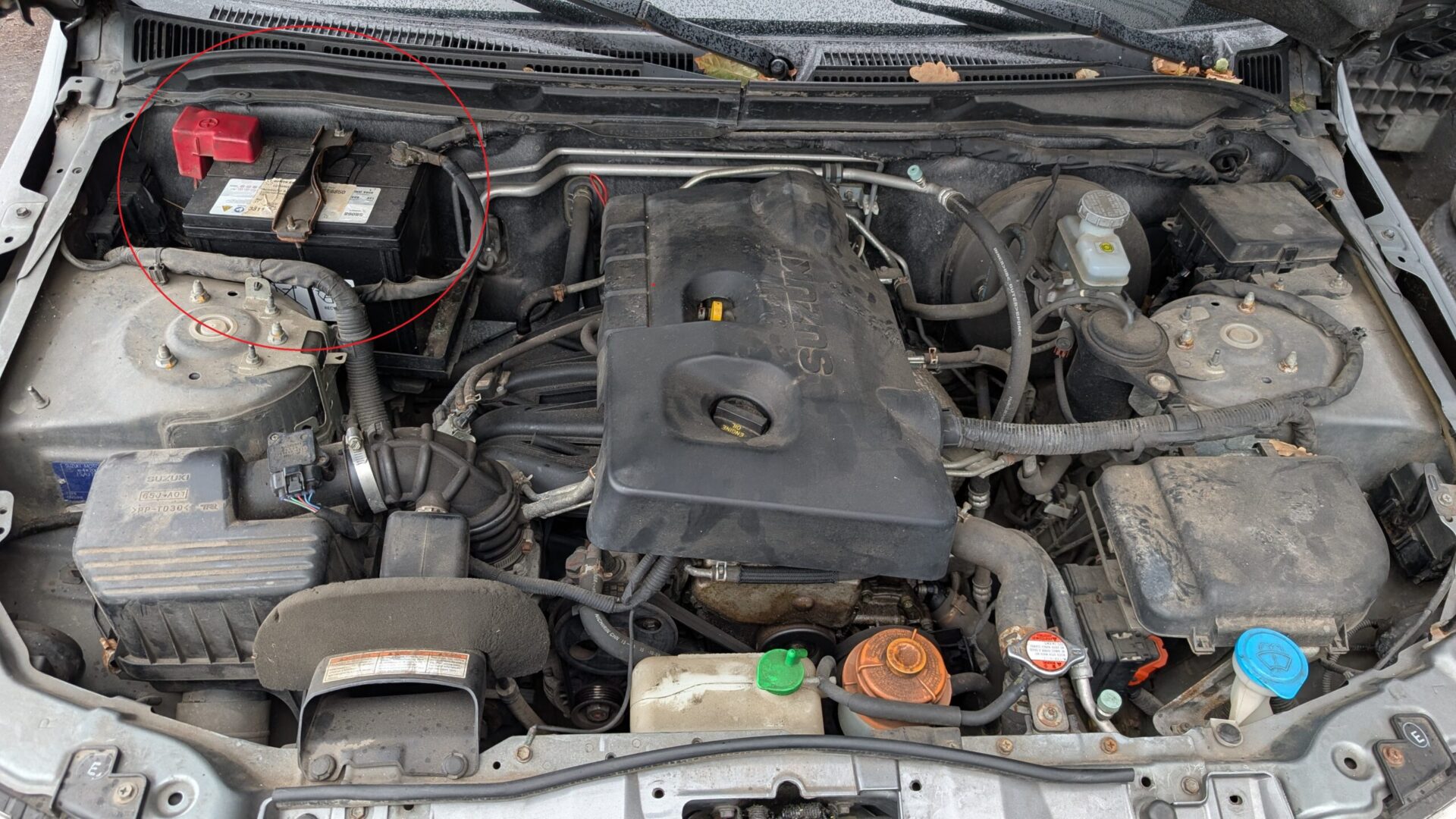

The battery sits in the engine compartment, secured with a bracket. Lift away any cover to reach the terminals and identify them before you start: the negative (−) post carries the black earth lead, and the positive (+) post carries the red lead under a plastic flap. Being clear on which is which keeps the job tidy and avoids an accidental short.
Before You Begin
- Park on level ground, switch the ignition OFF and remove the key.
- Make sure every consumer — lights, blower, radio — is switched off.
- Check whether your audio unit needs a security code and note it down before you disconnect.
- Jot down your radio presets and any custom settings so you can restore them.
- Wait around 90 seconds before working near the airbags or seat-belt pretensioners so those pyrotechnic circuits can discharge; have a 10 mm spanner, gloves and eye protection ready.
How to Disconnect the Battery
- Turn the ignition off, remove the key and confirm the electrical consumers are all off.
- Wait at least 90 seconds if you’ll be working anywhere near airbags or pretensioners.
- Loosen and remove the negative (−) cable first, then tuck the lead well clear of the post.
- Loosen and remove the positive (+) cable.
- If you’re taking the battery out completely, undo the hold-down clamp and lift the battery out squarely — keep it upright, it’s heavy.
How to Reconnect the Battery
- Sit the battery back in the tray and secure it with the hold-down bracket.
- Fit the positive (+) terminal first and tighten it securely.
- Fit the negative (−) terminal last and tighten it.
- Refit any cover and give both clamps a final check for tightness.
What You’ll Need to Reset Afterwards
- Reset the date and time on the instrument display.
- Re-enter the radio security code if the unit asks for one, then restore your presets and other preferences.
- Initialise the steering-angle sensor — with the engine running, turn the wheel fully left, then fully right, then bring it back to centre so the stability system relearns straight-ahead.
- Expect a couple of warning lights at first; many clear on their own once the car has been driven a short distance.
If a Warning Light Stays On or the Car Feels Off
- Recheck both cables are properly tight — a loose earth is the usual cause of odd electrical faults.
- Re-do the steering-angle relearn if the ESP or traction light stays lit, then take a short drive.
- Let the car relearn over a few minutes of driving; many systems self-calibrate on the move.
- If it cranks slowly or won’t start, have the battery and charging system tested — the battery may simply be tired.
- For long storage, a memory saver plugged in during the swap keeps the ECU and radio settings alive.
Frequently Asked Questions
Where is the battery on the Suzuki Grand Vitara?
It’s in the engine compartment, held down by a bracket. Lift any cover to reach the positive (+) and negative (−) terminals. There’s no need to remove other components to get a spanner on the clamps.
Which terminal do I disconnect first?
Always the negative (−) first, and reconnect it last. Working earth-first means that if your spanner slips onto the body there’s no live circuit to short against, so you avoid sparks near the battery.
What will I need to reset afterwards?
The clock, the radio (including its security code and presets), and the steering-angle sensor. The steering relearn is a simple full-left, full-right, back-to-centre routine with the engine running. A few warning lights may clear themselves after a short drive.
Does a new battery need coding on the Grand Vitara?
No — a like-for-like 12 V battery fits without any coding or registration on this generation. Reconnect in the correct order and work through the reset list, including the steering-angle relearn.
Will disconnecting the battery clear fault codes?
It may clear some temporary codes, but it isn’t a proper reset — a genuine fault will return, and the disconnect can itself trigger a light or two. Read any stored code afterwards so you know what you’re dealing with.
Can I jump-start it instead of disconnecting?
If the battery is only flat, a jump-start gets you going without touching the terminals. Disconnecting is for renewal, electrical work or storage. If a jump-start won’t hold, the battery is likely at the end of its life and worth replacing.
If a warning light stays on after the job, look the code up on autodtcs.com to tell a genuine fault from a leftover of the power cut.
