These instructions apply to the Suzuki Jimny Mk3 (JB) 1998-2018.
For other models, please choose your vehicle here.

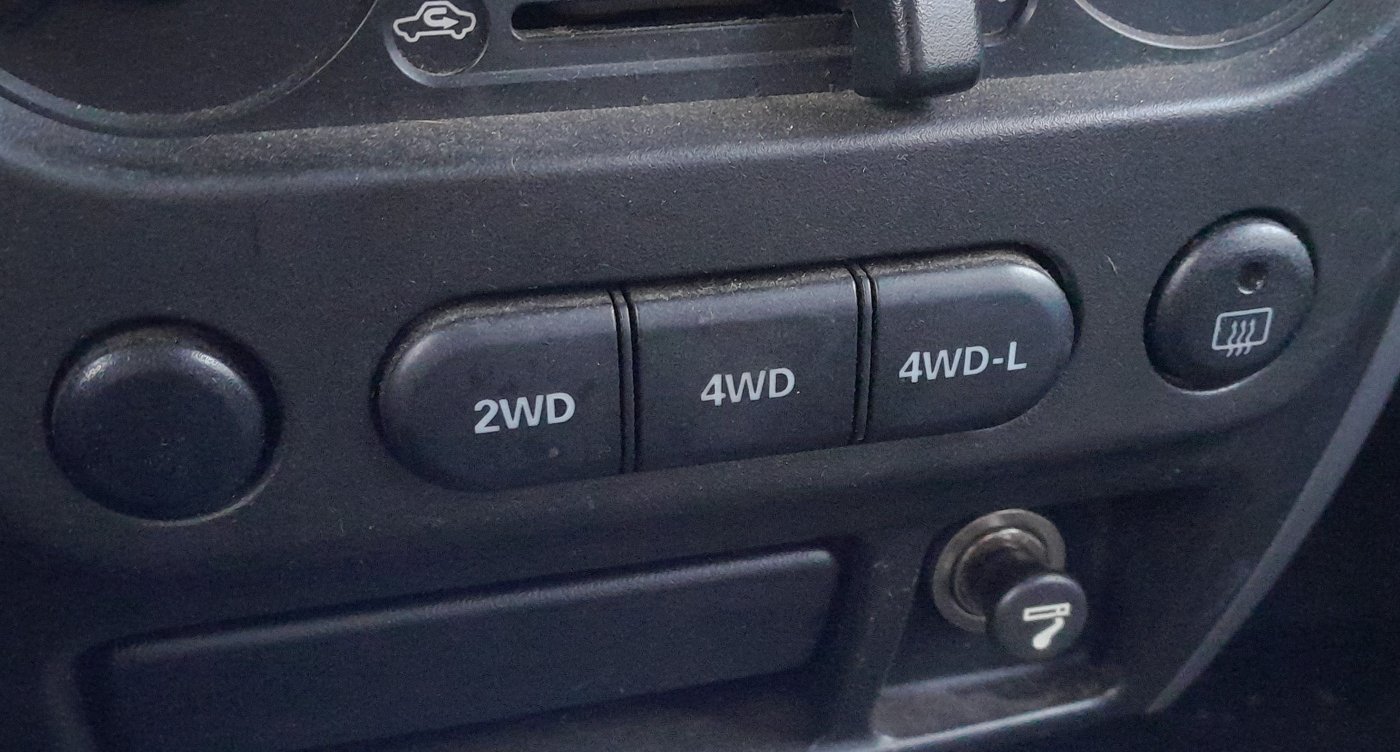

The Suzuki Jimny (JB) is a part-time four-wheel-drive off-roader. On the 2005-on facelift you change drive mode with three dash buttons — 2WD, 4WD and 4WD-L — which electrically shift the transfer case. Using the right one at the right time keeps the drivetrain happy and avoids a flashing 4WD light.
On the road, always run in 2WD. Four-wheel drive is for loose or slippery surfaces only; using it on dry tarmac causes “transmission wind-up” and heavy tire wear.
How to switch between 2WD, 4WD and 4WD-L
- 2WD ↔ 4WD (high range): you can switch on the move. Straighten the front wheels, ease off the accelerator, and press the 2WD or 4WD button. If you are moving, keep the speed below 100 km/h (60 mph). The indicator light stops flashing and stays on once the shift completes.
- Into 4WD-L (low range): you must be stopped. Bring the Jimny to a complete halt, put a manual gearbox in neutral (or hold the clutch down), keep the brake pressed, then press 4WD-L.
- Out of 4WD-L: stop completely again, select neutral or hold the clutch, then press 2WD or 4WD to return to high range.
- Wait for the dash light to stop flashing before driving off. A light that keeps flashing means the shift has not fully engaged — roll the car a few feet forwards or backwards to let the gears line up, then try again.
Use 4WD-L only for steep climbs, deep mud, sand or crawling — it roughly halves road speed in each gear while roughly doubling pulling power.
Why is my Jimny 4WD light flashing?
A flashing 4WD indicator means the transfer case is mid-shift and the gears have not meshed yet. It is normal for a second or two. If it keeps flashing, stop, make sure the gearbox is in neutral (for low range), and roll the vehicle slightly so the dog clutches align, then reselect.
Frequently asked questions
Can I switch between 2WD and 4WD while driving?
Yes — high-range 2WD and 4WD can be changed on the move with the wheels straight, as long as you are below 100 km/h (60 mph).
Do I have to stop to use 4WD-Low?
Yes. Low range only engages with the Jimny fully stopped and the gearbox in neutral (or the clutch held down).
Is it bad to drive in 4WD on tarmac?
Yes. The Jimny has no center differential, so four-wheel drive on dry grippy roads binds the drivetrain. Use 2WD on sealed roads.
For a model-by-model look at your dashboard symbols, see our Suzuki service guides.
Independent guide — not affiliated with Suzuki. Always follow your official service manual and safety precautions. Read our full disclaimer.
