Open the Hidden Diagnostic Menu

Last updated: June 11, 2026

The Toyota RAV4 (Mk4/XA40, 2013–2018) hides a combination-meter test mode in its instrument cluster — a genuine owner-accessible self-check that needs no diagnostic tool. It runs the gauge needles through their full sweep, lights every LCD segment and cycles the warning lamps, giving you a quick visual confirmation that the cluster hardware is working before you assume a gauge has failed.

What the hidden meter test mode does

This is Toyota’s combination-meter “operation check”. When entered, the speedometer and tachometer needles drive from their rest stops up to full scale and back down. Every segment in the LCD area lights — odometer, trip display, gear position, the multi-information block — and the warning icons flash on together so a failed bulb or LED stands out. It separates a real sensor or gauge fault from a simple dead segment or indicator, with no garage and no scanner involved.

The XA40 RAV4 comes with both a keyed barrel (lower trims) and Smart Key push-button start (higher trims), so the entry depends on which your car has.

How to enter the test mode

1. Sit in the car fully switched off, with the meter displaying the odometer rather than a trip reading. On push-button cars keep your foot OFF the brake.
2. Press and hold the trip-reset switch — the button beside the gauges you normally tap to step through ODO, TRIP A and TRIP B.
3. While holding it, reach IGNITION ON:
   • Keyed cars — turn the key from OFF to ON, the position just before START where the warning lights normally come up.
   • Smart-Key cars — press ENGINE START STOP twice without the brake; the second press lands on IGNITION ON.
4. Keep the reset switch held for a second or two after the cluster powers up, then release.

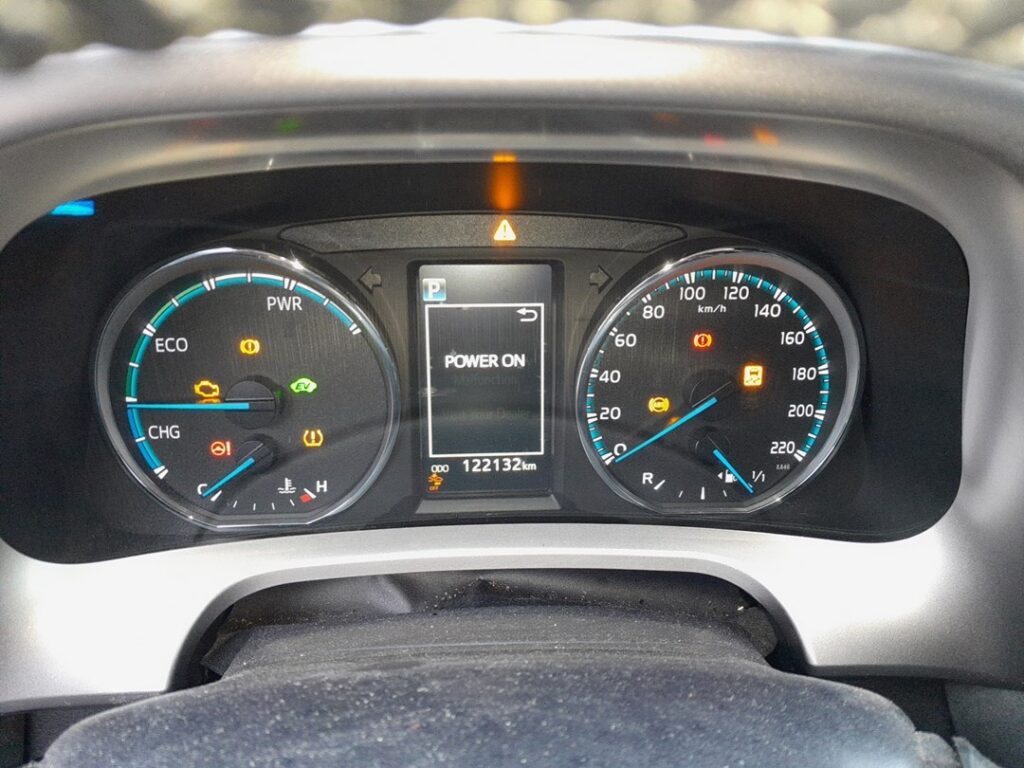

The cluster now self-tests: both needles sweep to maximum and return, the LCD floods every segment, and the warning symbols cycle. A needle that stalls, a blank screen patch or a lamp that never lights identifies the faulty element.

How to exit

Turn the ignition OFF, or press ENGINE START STOP once on Smart-Key cars. The cluster behaves normally at the next ignition-ON and saves nothing from the test. It resets no trip totals and touches no service-interval counter.

Frequently Asked Questions

Does this work on the RAV4 Hybrid (2016 facelift)? Yes. The Mk4 Hybrid uses the same XA40 cluster family; the hybrid-system power gauge sweeps in place of the rev counter during the test.

I have a key, not a button — is the sequence different? Only the ignition step. Hold the trip-reset switch first, then turn the key OFF to ON. The button must be held before the ignition comes up.

Will the test clear the Maintenance Required light or fault codes? No. It only exercises the display. The maintenance reset is a separate hold-trip-then-ON procedure, and clearing codes needs an OBD-II scanner.

One gauge sweeps fine but a warning lamp stays dark — what does that mean? Usually a single failed LED or bulb in that indicator. The gauge itself is healthy; only that lamp needs replacing.

Can running the test damage anything? No. The car stays in ignition-ON, the engine never starts, and the meter test is a factory diagnostic the cluster is built to perform.

If the self-test reveals a genuine warning rather than a dead segment, decode the underlying trouble code at autodtcs.com before arranging any repair.
