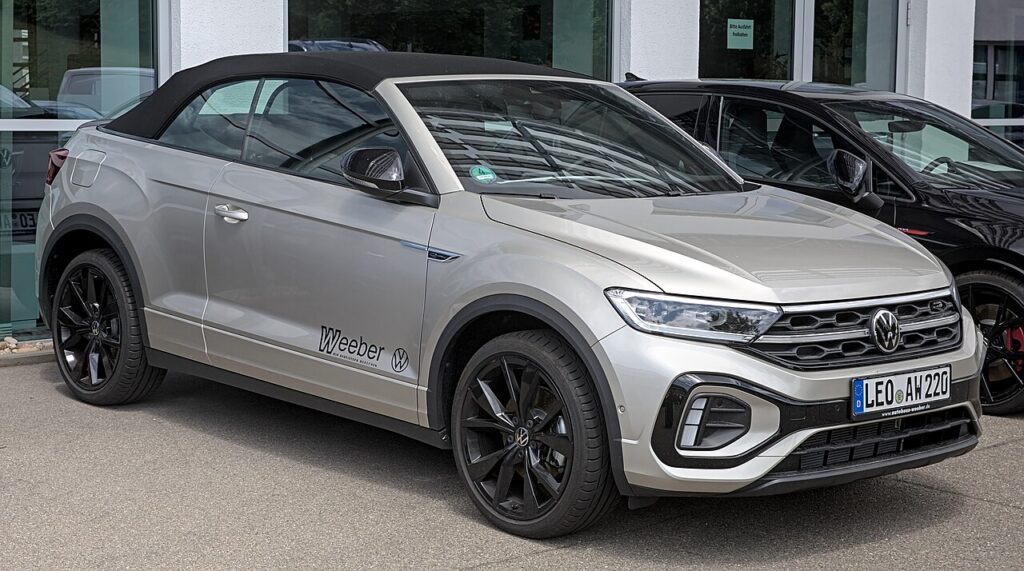

These instructions apply to the Volkswagen T-Roc Mk1 (A11) 2018-Present.
For other models, please choose your vehicle here.
The Volkswagen T-Roc (2018–Present) compact SUV is built on the MQB platform and, on EPB-equipped versions, uses motor-driven rear calipers for the electronic parking brake. To change the rear pads you put the EPB into service mode with a scan tool so the actuators retract electronically. There is no owner button trick that opens the rear calipers.
Check Which Brake You Have First
On the T-Roc the parking brake is trim-dependent. Higher trims and most automatics get the electronic parking brake (a small (P) switch on the console, usually with an AUTO HOLD button). Some early entry-level manual T-Rocs were specified with a conventional cable handbrake lever — if yours has a pull-up lever between the seats, this electronic procedure does not apply and you simply wind the pistons in the normal screw-type way. The rest of this guide is for the EPB cars.
What Service Mode Is and Why You Need It
On EPB cars each rear caliper has an electric motor that screws a spindle onto the piston to clamp the pads. New pads are thicker, so the spindle must be wound fully back first. Service mode retracts both rear motors so the piston can be pushed home by hand with the caliper off. Use VCDS, OBDeleven, or a generic £20–40 OBD EPB/SAS tool with a VAG “brake pad change” routine; the OBD port is under the dash, driver’s side.
Retracting the Caliper
- Park level, ignition on, engine off, battery charger connected — the EPB module aborts on low voltage.
- Turn Auto Hold off and release the parking brake.
- Select [53 — Parking Brake] → Basic Settings → Start lining change mode. The rear motors back the spindles off.
- Wait about 30 seconds after they stop, remove the caliper, and push the piston straight in by hand — no twisting.
Never Force the Pistons
On EPB cars, never clamp, wind or hand-force the rear pistons back. The piston rides on the EPB motor’s spindle; forcing it strips the actuator gears or spindle and ruins the caliper. Only after service mode has retracted the spindle does the piston push in — and then only with light, straight hand pressure.
Exit and Bed-In
With new pads fitted and the caliper torqued, select End lining change mode. The motors re-clamp. Cycle the ignition, apply and release the EPB twice, and check the brake-warning light is out. Then bed in with several moderate 30–40 mph stops, cooling between them, before hard use.
Frequently Asked Questions
Does my T-Roc have an electronic parking brake?
It depends on trim. A console (P) switch means EPB and this procedure applies; a pull-up lever between the seats means a manual cable handbrake and the standard screw-in pad change instead.
Can I open the EPB without a tool?
No. On EPB cars there is no manual release sequence — a generic OBD EPB tool with a VAG pad-change routine is required.
Why a battery charger?
The parking-brake controller is voltage-sensitive and will abort mid-routine on a weak battery, which can leave the calipers stuck open.
Is the T-Roc R the same?
Yes — the R has EPB and uses the same rear actuators and service-mode routine despite its bigger brakes.
EPB fault after the change?
Re-run End lining change mode to close the calipers, then clear the code. Decode any stored fault on autodtcs.com.
If a parking-brake warning stays on after the job and logs a code, look it up on autodtcs.com.
