These instructions apply to the Hyundai i10 Mk1 (PA) 2008-2013.
For other models, please choose your vehicle here.
The Hyundai i10 (PA, 2008–2013) has two fuse boxes: one in the engine compartment beside the 12 V battery, and one inside the cabin behind a pull-off cover on the driver’s-side end of the dashboard (the panel beside your knee). The tables below are transcribed directly from the fuse-box lids of a 2011 European 1.2 car — use them as a guide, but always read the legend printed on your own car’s lids, because the assignments and some ratings vary by year, trim, engine and market.
How to change a fuse
- Work out which box the circuit is in: the engine-bay box for high-current and engine circuits, the cabin box for most interior electrics.
- Switch off the ignition and the affected circuit, then open the cover and read the legend on the lid to find the right fuse.
- Pull the suspect fuse straight out with the plastic puller clipped inside the engine-bay box. A blown fuse has a broken metal strip inside.
- Fit a new fuse of the same amperage (same color) — never a higher rating, a screwdriver or a wire bridge.
- If the new fuse blows again there is a fault in that circuit — have it diagnosed rather than fitting a bigger fuse.
Spare fuses and the puller are clipped inside the engine-bay box. A set of numbered SPARE positions (10–30 A) and seven diodes also sit in the cabin box; the diodes are not user-serviceable.

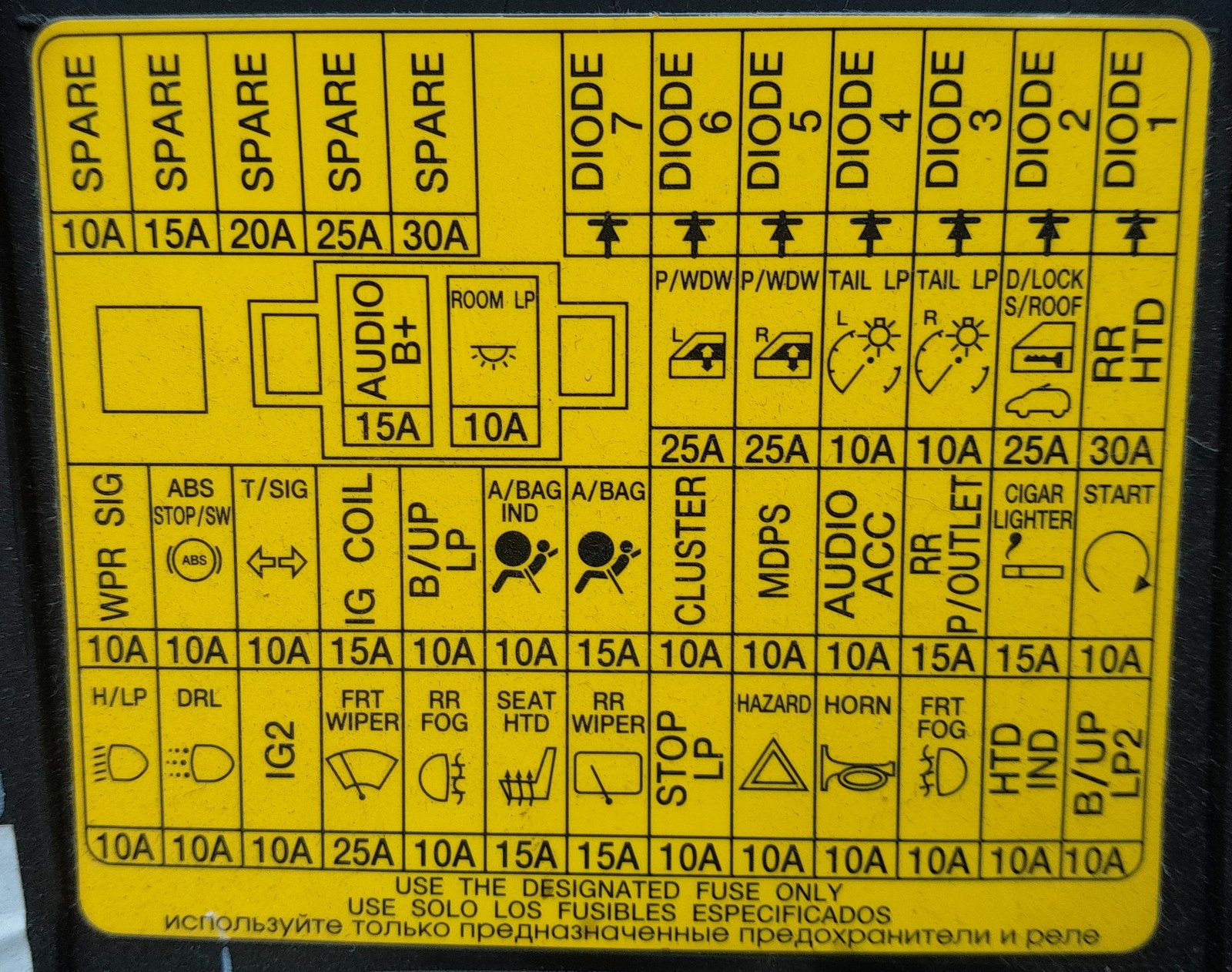

Passenger-compartment (interior) fuse box
Behind the pull-off cover on the driver’s-side end of the dash. Colors follow the standard blade-fuse code (10 A red, 15 A blue, 25 A clear, 30 A green).
| Fuse | Rating | Color | Protects / circuit |
|---|---|---|---|
| AUDIO B+ | 15A | Blue | Audio system (constant / memory feed) |
| ROOM LP | 10A | Red | Interior / room lamp |
| P/WDW LH | 25A | Clear | Power window, left |
| P/WDW RH | 25A | Clear | Power window, right |
| TAIL LP LH | 10A | Red | Tail / side lights, left |
| TAIL LP RH | 10A | Red | Tail / side lights, right |
| D/LOCK, S/ROOF | 25A | Clear | Central door locks and sunroof |
| RR HTD | 30A | Green | Rear-window heater (demister) |
| WPR SIG | 10A | Red | Wiper control signal |
| ABS, STOP/SW | 10A | Red | ABS and brake-light switch |
| T/SIG | 10A | Red | Turn signals (indicators) |
| IG COIL | 15A | Blue | Ignition coil |
| B/UP LP | 10A | Red | Reversing (back-up) lamp |
| A/BAG IND | 10A | Red | Airbag warning indicator |
| A/BAG | 15A | Blue | Airbag / SRS system |
| CLUSTER | 10A | Red | Instrument cluster |
| MDPS | 10A | Red | Electric power steering (control feed) |
| AUDIO ACC | 10A | Red | Audio (switched / accessory feed) |
| RR P/OUTLET | 15A | Blue | Rear 12 V power outlet |
| CIGAR LIGHTER | 15A | Blue | Cigarette lighter / front 12 V outlet |
| START | 10A | Red | Starter control circuit |
| H/LP | 10A | Red | Headlamp circuit (control) |
| DRL | 10A | Red | Daytime running lights |
| IG2 | 10A | Red | Ignition 2 (accessory circuits) |
| FRT WIPER | 25A | Clear | Front wiper motor |
| RR FOG | 10A | Red | Rear fog light |
| SEAT HTD | 15A | Blue | Heated front seats |
| RR WIPER | 15A | Blue | Rear wiper motor |
| STOP LP | 10A | Red | Brake (stop) lights |
| HAZARD | 10A | Red | Hazard flashers |
| HORN | 10A | Red | Horn |
| FRT FOG | 10A | Red | Front fog lights |
| HTD IND | 10A | Red | Heated rear-window indicator |
| B/UP LP2 | 10A | Red | Reversing (back-up) lamp (2) |

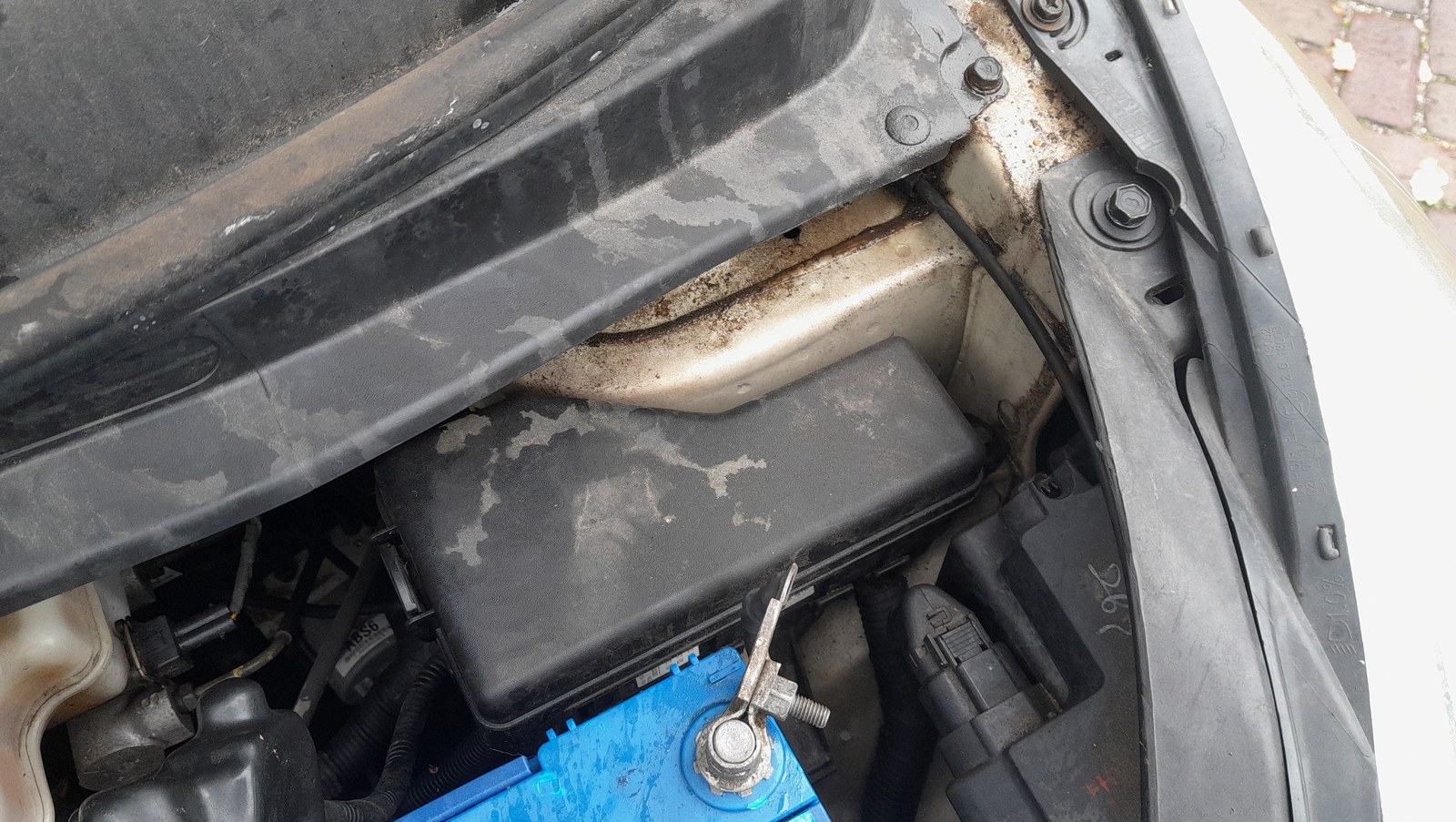

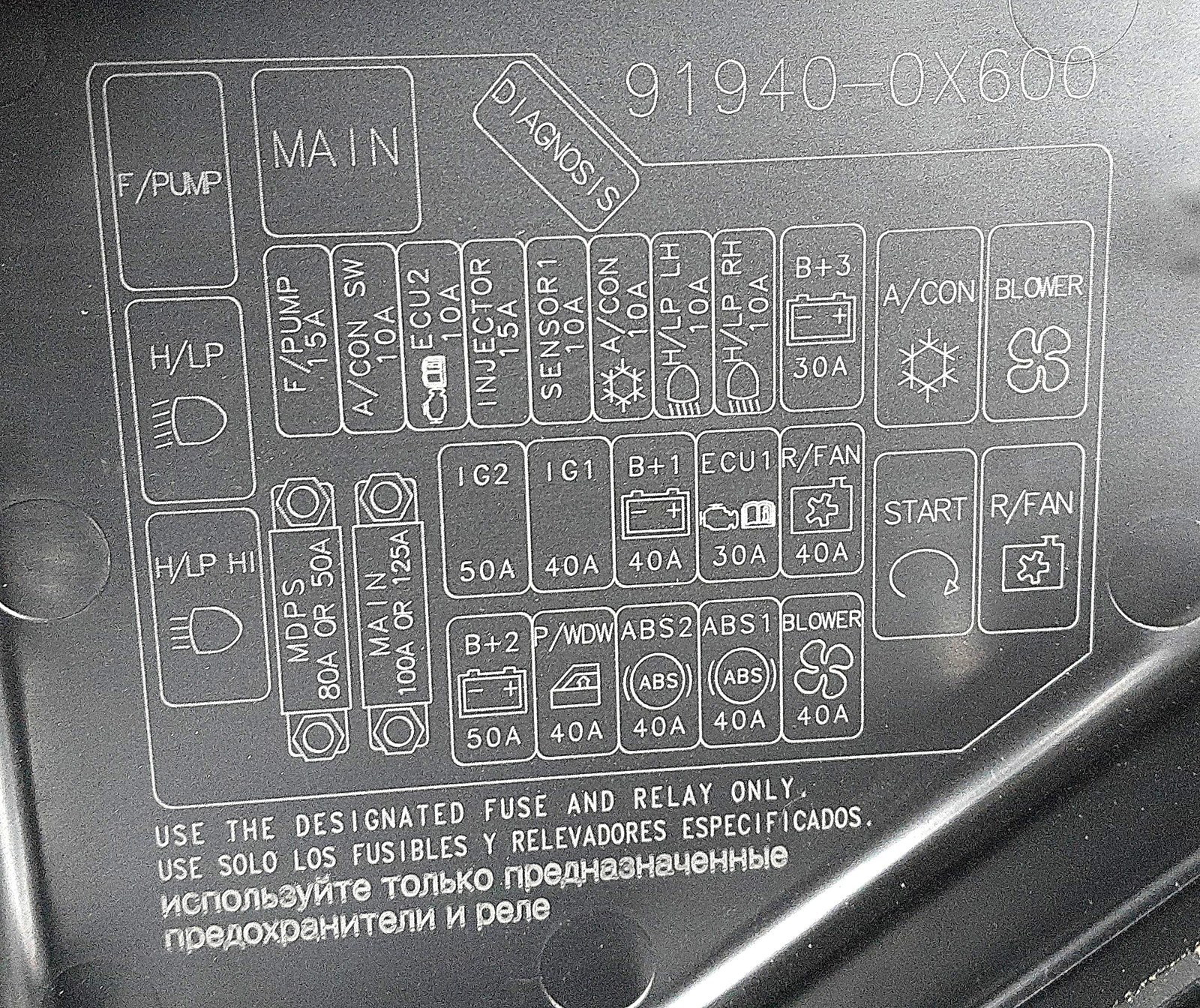

Engine-compartment fuse box
Beside the battery on the driver side. It holds the high-current fusible links plus a row of blade fuses and the main relays (fuel pump, headlamps, A/C, blower, cooling fan, starter). High-current links:
| Link | Rating | Protects / circuit |
|---|---|---|
| MAIN | 100A or 125A | Main battery supply (rating depends on build) |
| MDPS | 80A or 50A | Electric power steering (rating depends on build) |
| IG2 | 50A | Ignition 2 feed |
| IG1 | 40A | Ignition 1 feed |
| B+1 | 40A | Battery feed 1 (to interior box) |
| B+2 | 50A | Battery feed 2 |
| B+3 | 30A | Battery feed 3 |
| ECU1 | 30A | Engine control / ignition |
| R/FAN | 40A | Radiator cooling fan |
| P/WDW | 40A | Power windows feed |
| ABS1 | 40A | ABS system |
| ABS2 | 40A | ABS system |
| BLOWER | 40A | Heater / A-C blower feed |
Blade fuses in the engine-bay box:
| Fuse | Rating | Color | Protects / circuit |
|---|---|---|---|
| F/PUMP | 15A | Blue | Fuel pump |
| A/CON SW | 10A | Red | Air-conditioning switch |
| ECU2 | 10A | Red | Engine control (logic / sensors) |
| INJECTOR | 15A | Blue | Fuel injectors |
| SENSOR1 | 10A | Red | Engine sensors |
| A/CON | 10A | Red | Air-conditioning compressor clutch |
| H/LP LH | 10A | Red | Headlamp low beam, left |
| H/LP RH | 10A | Red | Headlamp low beam, right |
Verified on a 2011 European i10 1.2 (LHD). Layouts and some ratings differ by year, trim, engine and market — always check the legend on your own lids, and never fit a fuse of a higher rating than the one marked. Spotted a mistake for your car? Tell us on the contact page.
Frequently asked questions
Where is the fuse chart for my i10?
On the underside of each fuse-box lid, and in the owner’s handbook — those are the only charts guaranteed to match your exact car. The tables above are transcribed from a 2011 1.2 and are a close guide for the range.
Which fuse is the cigarette lighter / 12 V socket?
The CIGAR LIGHTER fuse (15 A) in the cabin box feeds the front socket; the rear socket is RR P/OUTLET (15 A).
My interior electrics are all dead — which fuse?
Check the high-current B+1 (40 A) link in the engine-bay box, which feeds the cabin box, before chasing individual fuses.
Can I use a higher-rated fuse to stop one blowing?
No. A higher rating lets too much current through and can overheat the wiring. Fit the same rating and, if it keeps blowing, have the circuit checked.
