These instructions apply to the Hyundai i40 Mk1 (VF) 2011-2019.
For other models, please choose your vehicle here.

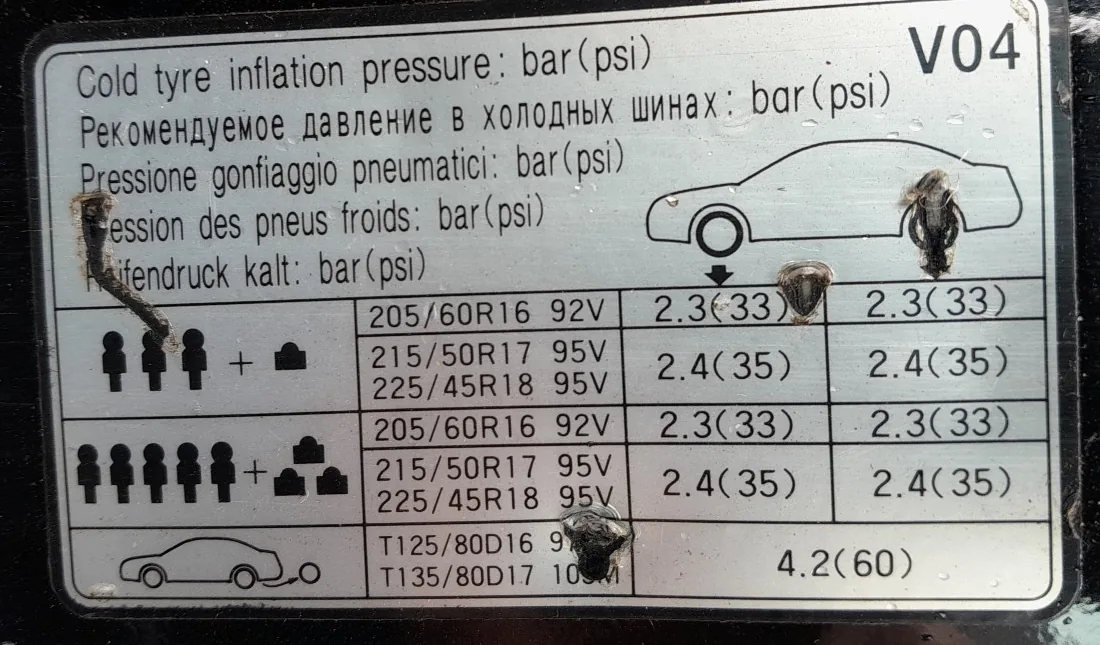

Need the Hyundai i40 (VF, 2011–2019) tire pressures, or to clear the TPMS light? The recommended cold pressures are on the driver’s door-pillar label and listed below. The i40 uses a direct sensor in each wheel, so there is no reset button — you set the pressures correctly and drive, and the light clears itself.
Hyundai i40 Tire Pressure Chart
Set these cold — before driving, or after the car has stood for at least three hours. On the i40 the figures are the same for normal and full load.
| Tire size (rim) | Front | Rear |
|---|---|---|
| 205/60 R16 (7.0J×16) | 2.3 bar (33 psi) | 2.3 bar (33 psi) |
| 215/50 R17 (7.5J×17) | 2.4 bar (35 psi) | 2.4 bar (35 psi) |
| 225/45 R18 (8.0J×18) | 2.4 bar (35 psi) | 2.4 bar (35 psi) |
| Compact spare (T125/80 D16 or T135/80 D17) | 4.2 bar (60 psi) | |
Check the pressures cold and include the spare. A warm tire reads about 0.3–0.4 bar (4–6 psi) higher, so don’t bleed air from a hot tire to hit these numbers. Figures confirmed against this car’s own door placard and the i40 owner’s manual.
How to Clear the i40 TPMS Light
- Set all four tires to the correct cold pressure from the chart above (and the label in the driver’s door opening).
- Turn the ignition on and start the car.
- Drive for about 20 minutes, keeping your speed above 20 km/h (12 mph) where it is safe.
- The system relearns the correct pressures and the warning light goes out on its own.
If the Light Stays On
- Re-check every tire with an accurate gauge, including any that looks fine — a slow puncture will keep the light on.
- A flashing TPMS light points to a system fault (often a flat sensor battery after several years) rather than low pressure — have it scanned.
- Fitted the temporary spare? It has no sensor, so the warning stays on until the repaired road wheel is back on.
Frequently Asked Questions
What tire pressure does the Hyundai i40 need?
On the common 205/60 R16 wheels it is 2.3 bar (33 psi) front and rear. On 17-inch (215/50 R17) and 18-inch (225/45 R18) wheels it is 2.4 bar (35 psi) all round. The temporary spare takes 4.2 bar (60 psi).
Is there a TPMS reset button on the i40?
No. Because the i40 reads a sensor in each wheel, you simply set the pressures and drive; the system relearns automatically after about 20 minutes above 20 km/h.
Why won’t the light go out?
Most often one tire is still below spec — re-check with a gauge. If the light flashes, a sensor or the system needs attention rather than air.
Does a spare wheel have a sensor?
No, the temporary spare is not monitored, so the warning will show while it is fitted. It clears once the repaired road wheel is back on and the pressures are correct.
If a warning light stays on afterwards, look the code up on our sister site autodtcs.com to see what it means.
Independent guide — not affiliated with Hyundai. Always follow your official service manual and safety precautions. Read our full disclaimer.
