These instructions apply to the Kia Picanto Mk2 (TA) 2011-2017.
For other models, please choose your vehicle here.
Full factory specifications for the second-generation Kia Picanto (TA, 2011–2017), covering the 1.0 and 1.25 Kappa petrol engines. Figures below are drawn from the Kia build sheet, the European owner’s manual, and the door-pillar labels on the car itself.
Use the table to check engine output, fluid capacities, battery size, and the correct cold tire pressures before any service.
Each column is one specific vehicle — a single engine or motor and, where shown, body style. Dimensions and several weights are specific to that body and drivetrain; other body or powertrain versions differ, so match the column to your own vehicle.
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| Length | 3,595 mm | 3,595 mm |
| Width (excl. mirrors) | 1,595 mm | 1,595 mm |
| Height | 1,480 mm | 1,480 mm |
| Wheelbase | 2,385 mm | 2,385 mm |
| Track (front / rear) | — | — |
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| Kerb weight | 920 kg | — |
| Gross vehicle weight | 1,340 kg | — |
| Payload (approx.) | — | — |
| Max axle load, front | — | — |
| Max axle load, rear | — | — |
| Towing (braked trailer) | — | — |
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| Engine code | G3LA | G4LA |
| Fuel | Petrol | Petrol |
| Cylinders / layout | 3, in line | 4, in line |
| Displacement | 998 cc | 1,248 cc |
| Max power | 51 kW (69 PS) @ 6,200 | 63 kW (85 PS) @ 6,000 |
| Max torque | 95 Nm @ 3,500 | 121 Nm @ 4,000 |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission standard | Euro 5 | Euro 5 |
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| 0–100 km/h (0–60 mph) | — | — |
| Top speed | — | — |
| Drive | Front-wheel drive | Front-wheel drive |
| Transmission | 5-speed manual | 5-speed manual / 4-speed automatic |
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| Fuel consumption (combined) | — | — |
| Urban / extra-urban | — | — |
| CO₂ (combined) | — | — |
| Fuel tank | 35 litres | 35 litres |
| Drive-by noise | — | — |
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| Front brakes | Ventilated discs | Ventilated discs |
| Rear brakes | Drums | Drums |
| Tyre sizes | 155/70 R13 / 165/60 R14 | 165/60 R14 / 175/50 R15 |
| Rim sizes | 5.0J x 14 | — |
| Tyre pressures, normal (front / rear) | 2.3 bar / 33 psi front, 2.1 bar / 31 psi rear (up to 3 occupants) | 165/60 R14: 2.3 bar / 33 psi front, 2.1 bar / 31 psi rear · 175/50 R15: 2.5 bar / 36 psi front & rear (up to 3 occupants) |
| Tyre pressures, laden (front / rear) | 2.5 bar / 36 psi front & rear (full load); compact spare 4.2 bar / 60 psi | 2.5 bar / 36 psi front & rear (full load); compact spare 4.2 bar / 60 psi |
| Wheel-nut torque | 88-107 Nm (9-11 kg·m) | 88-107 Nm (9-11 kg·m) |
| 1.0 Kappa MPI (G3LA)EU | 1.25 Kappa MPI (G4LA)EU | |
|---|---|---|
| Engine oil (with filter) | 2.9 L (drain & refill) - 5W-20, API SM / ILSAC GF-4 | 3.6 L (drain & refill) - 5W-20, API SM / ILSAC GF-4 |
| Coolant | 5.1 L - ethylene-glycol (aluminium radiator) | 5.1 L - ethylene-glycol (aluminium radiator) |
| Gearbox oil (manual) | 1.9 L - 75W/85, API GL-4 (5-speed manual) | 1.9 L - 75W/85 GL-4 (manual); 6.1 L ATF SP-III (4-speed auto) |
| 12 V battery | 40 Ah (20HR), engine compartment | 40 Ah (20HR), engine compartment |
| Air-con refrigerant | — | — |
| Spark plugs | — | — |
| Spark-plug gap | — | — |
Sources: Owner's manual · Homologation (Certificate of Conformity). Where an owner’s manual or homologation figure exists it takes precedence; workshop data fills only what those omit.
Cold tire pressures

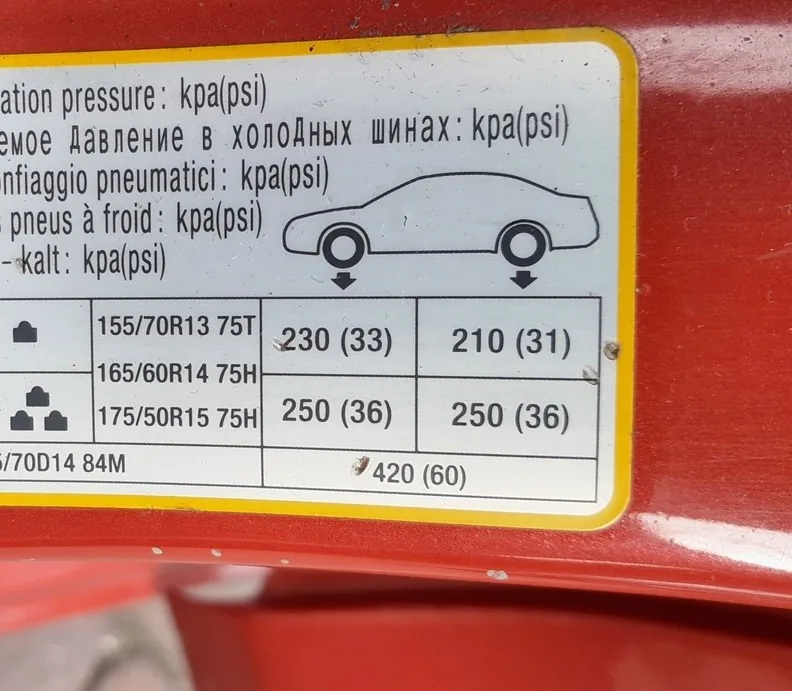

The Picanto TA carries its tire-pressure label on the driver’s-side door pillar. The values below are read directly from that placard and apply to every standard wheel size fitted to this generation (155/70 R13, 165/60 R14, and 175/50 R15).
| Condition | Front | Rear |
|---|---|---|
| Up to 3 occupants (normal) | 2.3 bar / 33 psi | 2.1 bar / 31 psi |
| Full load (4–5 + luggage) | 2.5 bar / 36 psi | 2.5 bar / 36 psi |
| Compact spare (T105/70 D14) | 4.2 bar / 60 psi | |
Always set pressures cold, before the car has been driven more than a mile. Warm tires read 0.3–0.4 bar higher — do not bleed air to correct this. The compact spare is for temporary use only, at speeds up to 80 km/h (50 mph).
At a glance
- Engines: 1.0 Kappa (G3LA, 998 cc, 69 PS) and 1.25 Kappa (G4LA, 1,248 cc, 85 PS), both naturally aspirated petrol.
- Fuel tank: 35 litres.
- Engine oil: 2.9 L (1.0) or 3.6 L (1.25) of 5W-20, API SM / ILSAC GF-4.
- Battery: 40 Ah, in the engine compartment.
- Wheel-nut torque: 88–107 Nm (9–11 kg·m).
Frequently asked questions
Does the Kia Picanto TA have a timing belt or a chain?
The 1.0 and 1.25 Kappa engines use a timing chain, which is designed to last the life of the engine and has no fixed replacement interval under normal use.
What oil does a 2011–2017 Picanto take?
Kia specifies 5W-20 (API SM / ILSAC GF-4 or better) for Europe. A 1.0 holds 2.9 litres on a drain-and-refill; the 1.25 holds 3.6 litres.
How big is the Picanto’s fuel tank?
35 litres for every TA variant, petrol or LPG.
