These instructions apply to the Mercedes C-Class Mk5 (W206) 2021-Present.
For other models, please choose your vehicle here.
The Mercedes-Benz C-Class W206 (2021–present) ships with a single style of key: the slim, chrome-framed SmartKey with the triangular panic button, a smooth piano-black face and a mechanical emergency blade hidden inside. There is no folding “flip” key on this generation and no button-cell keycard — every W206, whether a C 200, C 300 or C 300 e plug-in hybrid, uses this one keyless-go fob. When it starts working only from arm’s length, refuses to lock the car from across the car park, or throws a key-battery warning in the cluster, the cause is almost always the coin cell inside — a five-minute fix once you know how the case opens.
How to Tell the Fob Battery Is Dying
- Shrinking range. You find yourself standing right beside the C-Class, or holding the key against the door handle, before it will lock or unlock. A steadily shrinking working distance is the classic first warning.
- Keyless-Go stops waking the car. With a weak cell the W206 may no longer unlock as you grip the handle or start when you press the button — you have to fall back on holding the fob close or touching it to the start button.
- A dashboard message. The instrument cluster shows a “Key battery low”-style notification when the SmartKey’s charge drops. Once you see it, the cell usually has only a few weeks left.
- Cold-weather dropouts. A near-flat lithium cell loses voltage in the cold, so the fob that worked in the afternoon can feel dead on a frosty morning.
A coin cell in a W206 SmartKey typically lasts two to four years, less if you use keyless entry constantly or leave the fob sitting near the car so it wakes repeatedly. If yours is a couple of years old and showing any of these signs, fit a fresh cell before suspecting the car’s receiver.
The Battery You Need

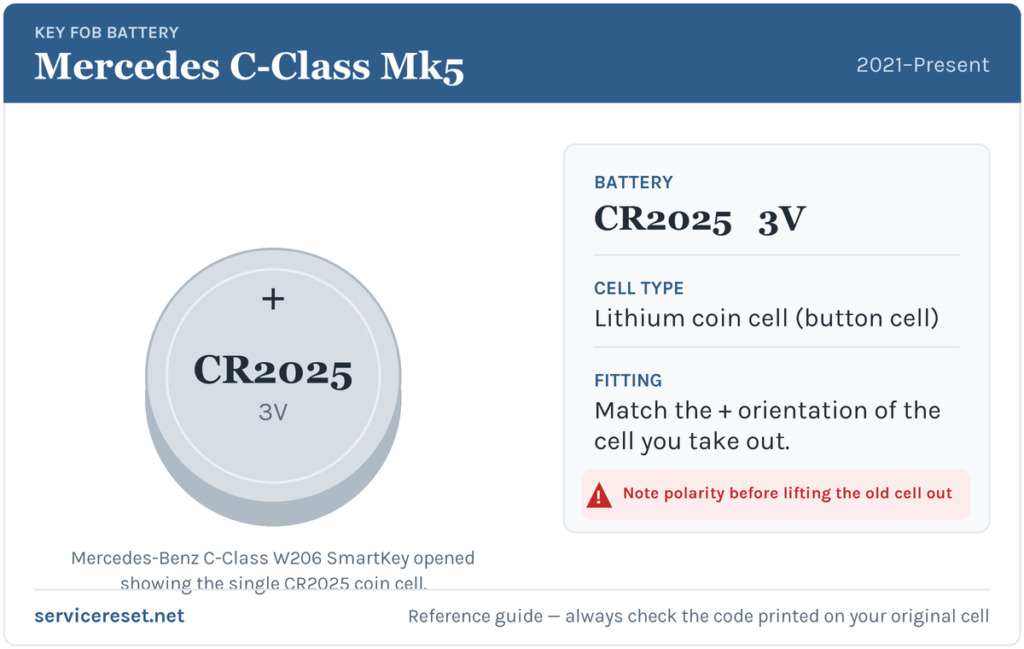

The W206 SmartKey uses a single CR2025 3-volt lithium coin cell. That is confirmed by the genuine Mercedes-Benz remote battery part (000-828-03-88-10), which Mercedes lists specifically as a keyless remote coin battery, type CR2025. It is a widely stocked cell — any supermarket, hardware shop or phone-accessory counter will have it.
Do not reach for a CR2032 out of habit. Both cells are 20 mm across, but the CR2032 is 3.2 mm thick against the CR2025’s 2.5 mm — forcing the thicker cell into the W206’s shallow tray can splay the contacts or crack the holder. Buy a good branded CR2025; budget cells sag under the brief high current the transmitter draws and can give poor range even when brand new.
How to Replace the W206 SmartKey Battery
- Slide out the emergency key blade. Press the small release catch at the base of the fob and pull the metal mechanical key straight out of the bottom of the housing. Set it aside — you will use it as your prying tool.
- Pop off the clip-on cover. With the blade removed you will see a small internal tab or a narrow gap at the base of the key. Slide the tip of the emergency blade into that gap and lever gently — the clip-on back cover unclips and lifts away, exposing the coin cell. Work slowly; the cover is a plastic clip, so it needs a nudge, not force.
- Lift out the old cell. Note which face of the CR2025 is showing before you remove it. Ease the flat old cell out of its holder with a fingernail or the tip of the blade, touching the metal edges rather than the flat faces.
- Fit the new CR2025. Seat the fresh cell the same way round as the one you took out — on these keys the positive (+) marked face generally sits upward, but always copy the orientation you found rather than guessing. Press it fully home under its clip so it sits flat against clean contacts.
- Close it up. Refit the clip-on cover and press until it clicks all the way round, then slide the emergency blade back into the housing until it latches. Test every button.
⚠️ Get the orientation right. A coin cell fitted the wrong way round will not power the fob and can slowly discharge against the contacts — so match the exact position of the cell you removed before you snap the case shut.
Did It Work?
Step back a few metres and lock, then unlock, the C-Class with the buttons. Full range should return at once. For keyless entry, grip the door handle to confirm the car wakes, and press the start button to check it reads the fob. Any “key battery low” message clears the next time the car reads a healthy key — sometimes instantly, sometimes after one drive cycle.
If a Fresh Cell Doesn’t Fix It
- Re-check the cell and its seating. Confirm it is a CR2025 (not a thinner CR2016 that rattles loose), that it is the right way up, and that it sits firmly under its clip.
- Clean the contacts. A smear of finger grease or light corrosion on the terminals is enough to cause dropouts — wipe them with a dry cloth.
- Try the spare. If your second W206 key works normally, the problem is the first fob’s electronics, not the car.
- Rule out the car’s 12 V battery. A tired vehicle battery can make the W206 slow to respond to the key and mimic a fob fault; if the car itself is sluggish to wake, have the main battery checked.
New Key or Spare — Why It’s a Dealer Job
Changing the cell leaves the fob’s existing coding untouched, so no reprogramming is needed and the key works the moment you close it up. A new key is a different matter: Mercedes’s FBS immobiliser system is deliberately locked down, and a replacement SmartKey has to be ordered against the car’s VIN and coded through the dealer’s secure online process. Independent locksmiths generally cannot cut and program a W206 key the way they can on older cars, so budget for a main-dealer visit if you lose one — and keep the battery in your spare fresh so you are never down to a single working key.
Frequently Asked Questions
What battery does a Mercedes C-Class W206 key take?
A single CR2025 3-volt lithium coin cell. That matches the genuine Mercedes remote battery part, which is listed as a type-CR2025 keyless remote coin battery.
Can I use a CR2032 instead?
It is best avoided. A CR2032 is the same 20 mm diameter but noticeably thicker, and squeezing it into the W206’s CR2025 tray can distort the contacts or crack the holder. Stick to a CR2025.
Which way up does the cell go?
Fit it the same way round as the one you removed. On these keys the positive (+) face usually sits upward, but copying the orientation of the old cell is the reliable rule — an upside-down cell simply won’t power the fob.
Do I need to reprogram the key afterwards?
No. A battery swap does not affect the coding, so the SmartKey works straight away. Only a brand-new or replacement key needs programming, and that is done by Mercedes.
How long should a W206 key battery last?
Around two to four years. Frequent keyless-entry use, or leaving the fob near the car so it keeps waking, shortens that; storing your spare away from the vehicle helps its cell last longer.
Can I still drive the C-Class if the fob battery is completely dead?
Yes. Slide out the emergency blade to unlock the driver’s door, then hold the key against the start button — the car can read the fob at close range even with a flat cell, so a dead battery won’t strand you.
If the key stopped responding suddenly rather than fading — especially just after the car’s 12 V battery was disconnected — a stored fault or a wake-up glitch is more likely than a flat cell; you can look up what a logged code means on autodtcs.com.
