These instructions apply to the Renault Megane Mk4 (XFB) 2016-2022.
For other models, please choose your vehicle here.
The Renault Mégane Mk4 (2016–2022) doesn’t use a conventional round key fob at all — it carries Renault’s flat, credit-card-shaped hands-free keycard. Depending on trim the Mégane IV came with either the basic remote card or the fully hands-free (keyless entry and start) version, but physically they’re the same slim card with a fold-out emergency blade inside. When the card only works pressed against the door, drops out in the cold, or the dash flashes a card-battery warning, the culprit is nearly always the coin cell inside. Here is exactly which cell the Mégane keycard takes, how to split the card open without cracking it, and the four-button trick that clears the warning afterwards.
How to Tell the Keycard Battery Is Dying
- Shrinking range. You have to stand right at the car — or hold the card against the door handle — to lock or unlock. This is the first and most reliable sign on the Mégane.
- A dash message. The instrument panel shows a “Card battery low” warning when the cell voltage drops. The car will still start, so it’s a warning, not a breakdown.
- Hands-free stops recognising you. On keyless cars the door no longer unlocks as you grip the handle, and the start button no longer wakes on its own — you fall back to touching the card to the reader.
- Cold-weather dropouts. A near-flat lithium cell sags at low temperature, so intermittent response on frosty mornings often means the battery is on its way out.
Renault rates the keycard cell at roughly two years of service. If yours is around that age and showing any of the above, fit a fresh cell before you suspect the aerials or the immobiliser.
The Battery You Need

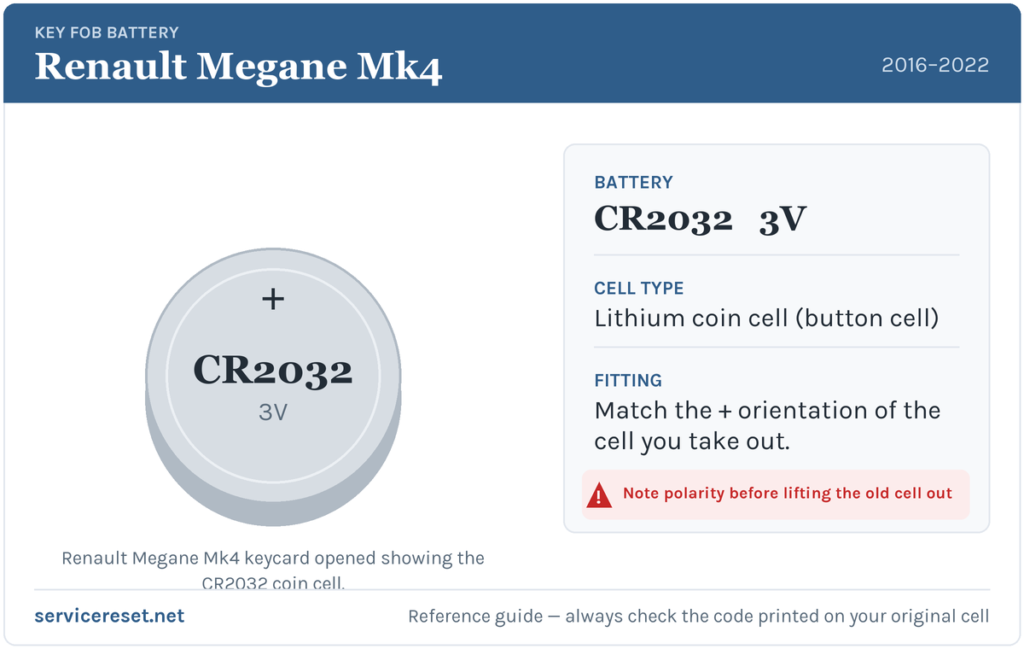

The Mégane Mk4 keycard takes a single CR2032 3-volt lithium coin cell — the same flat 20 mm cell sold in every supermarket and hardware shop (a “Maxell 2032” or any branded CR2032 is the identical part). Buy a good-quality cell: cheap coin cells sag under the brief high current the transmitter draws and can give short range even when box-fresh. Both the remote-only and the hands-free cards use this same CR2032.
How to Change the Mégane Keycard Battery
- Release the emergency blade first. Press the small catch (the grey release button) on the edge of the card and pull the metal emergency key blade straight out. Freeing the blade also unlocks the rear cover — don’t skip it and try to force the case.
- Slide off the rear cover. With the blade removed, press on the marked zone and slide the back casing downward, then lift it away. On some cards there is then a small inner battery cap to unclip — ease it up gently with a fingernail or a thin plastic tool. It can be a tight fit.
- Lift out the old cell. Press down on one edge of the coin cell and lift the opposite edge to pop it free of its clip. Note which way up it sat before it comes out.
- Fit the new CR2032 to the template. Seat the fresh cell the way the diagram moulded inside the cover shows — match the orientation of the one you removed. Keep your fingers off the flat faces; skin grease on the contacts can cause dropouts.
- Reassemble. Clip the battery cap back on, slide the rear cover home until it latches, and push the emergency blade back into the card until it clicks.
⚠️ Respect the polarity. The Mégane card has a template moulded inside the cover showing which face points up. Fit the cell the wrong way round and the card won’t transmit — and can slowly discharge the new cell — so always copy the orientation of the one you took out.
Clear the “Card Battery Low” Message
The warning does not always clear on its own after a battery swap. Renault’s own procedure is simple: stand close to the car and press any one button on the card four times, then start the Mégane. The re-sync tells the car it is now reading a healthy card and the message drops off the display.
Check It Worked
Step back a few metres and lock, then unlock, the car with the card buttons — full range should return at once. On a hands-free Mégane, the door should again unlock as you grip the handle and the start button should wake without touching the card to the reader. If the low-battery message lingers, drive one short cycle after the four-press re-sync; it usually clears the next time the car reads the card.
If a Fresh Cell Doesn’t Fix It
- Re-check orientation and seating. A cell fitted upside-down, or not fully home under its clip, is the single most common reason a card stays dead after a battery change. Match the moulded template.
- Wipe the contacts. A smear of finger grease or light corrosion on the terminals is enough to cause dropouts — clean them with a dry cloth.
- Do the four-press re-sync. If you changed the battery but never re-synced, the warning and the poor range can persist until you press a card button four times near the car.
- Rule out the car’s own battery. A weak 12 V battery can make the Mégane slow to recognise the card and mimic a key fault. If the card still struggles, see our guide to starting a Mégane Mk4 with a dead keycard.
New Card or Spare — Why It’s a Dealer Job
Changing the coin cell keeps the card’s existing coding, so no reprogramming is needed — the card works the instant the fresh cell is in and re-synced. A new or spare card is a different matter: a blank Mégane keycard has to be ordered against the car’s VIN and then coded to the immobiliser with Renault diagnostic equipment (CLIP), and the emergency blade cut to the lock. That makes adding a spare or replacing a lost card a job for a Renault dealer or an auto-locksmith — so keep the battery in your spare card fresh too, and you’re never down to one working card.
Frequently Asked Questions
What battery does a Renault Mégane Mk4 keycard take?
A single CR2032 3-volt lithium coin cell — the standard 20 mm flat cell, the same for both the remote and the hands-free keycard.
Which way up does the cell go in the Mégane card?
Match the template moulded inside the cover, and copy the orientation of the cell you removed. Fitting it the wrong way stops the card transmitting and can flatten the new cell.
Why does it still say “card battery low” after a new battery?
Because the message needs the re-sync. Stand next to the car and press one card button four times, then start the engine — the warning clears once the car reads the healthy card, sometimes after one drive cycle.
Do I need to reprogram the keycard after changing the battery?
No. A battery swap doesn’t touch the coding. Only a brand-new card needs programming to the car’s immobiliser.
How long should a Mégane keycard battery last?
Renault quotes about two years. Frequent hands-free use, or leaving the card near the car so it wakes constantly, shortens that.
Can I still drive the Mégane if the card is completely dead?
Yes. Use the emergency blade to unlock the door, then hold the card flat against the marked start button so the car can read it without battery power — the system is designed to start on a flat card, so a dead cell won’t strand you.
If the card stopped responding suddenly — rather than fading over weeks — and the dash is also showing a stored warning, the cause may be the electronics rather than the cell. You can look up what a logged fault code means on autodtcs.com before booking any diagnostic work.
