These instructions apply to the Suzuki Vitara Mk4 (LY) 2015-2024.
For other models, please choose your vehicle here.
Verified specifications for the fourth-generation Suzuki Vitara (chassis LY, 2015–2024) across its full engine range — the 1.6 petrol and diesel, the 1.0 and 1.4 Boosterjet turbos, the 1.4 48V mild hybrid, and the 1.5 full hybrid. Figures come from the Suzuki owner’s manual and the vehicle’s own technical data.
Each column is one specific vehicle — a single engine or motor and, where shown, body style. Dimensions and several weights are specific to that body and drivetrain; other body or powertrain versions differ, so match the column to your own vehicle.
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| Length | 4,175 mm | 4,175 mm | 4,175 mm | 4,175 mm | 4,175 mm | 4,175 mm |
| Width (excl. mirrors) | 1,775 mm | 1,775 mm | 1,775 mm | 1,775 mm | 1,775 mm | 1,775 mm |
| Height | 1,610 mm | 1,610 mm | 1,610 mm | 1,610 mm | 1,610 mm | 1,610 mm |
| Wheelbase | 2,500 mm | 2,500 mm | 2,500 mm | 2,500 mm | 2,500 mm | 2,500 mm |
| Track (front / rear) | — | — | — | — | — | — |
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| Kerb weight | 1,075-1,160 kg | 1,210-1,310 kg | 1,075-1,160 kg | 1,120-1,240 kg | 1,145-1,265 kg | 1,230-1,345 kg |
| Gross vehicle weight | 1,670 kg | 1,800 kg | 1,670 kg | 1,730 kg | 1,750 kg | 1,790 kg |
| Payload (approx.) | — | — | — | — | — | — |
| Max axle load, front | — | — | — | — | — | — |
| Max axle load, rear | — | — | — | — | — | — |
| Towing (braked trailer) | — | — | — | — | — | — |
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| Engine code | M16A | D16AA | K10C | K14C | K14D | K15C |
| Fuel | Petrol | Diesel | Petrol | Petrol | Petrol 48V mild hybrid | Petrol full hybrid (self-charging) |
| Cylinders / layout | 4, in line (DOHC 16v) | 4, in line (DOHC 16v) | 3, in line (DOHC 12v turbo) | 4, in line (DOHC 16v turbo) | 4, in line (DOHC 16v turbo) | 4, in line (DOHC 16v) + electric motor |
| Displacement | 1,586 cc | 1,598 cc | 998 cc | 1,373 cc | 1,373 cc | 1,462 cc |
| Max power | 88 kW (120 PS) @ 6,000 | 88 kW (120 PS) @ 3,750 | 82 kW (111 PS) @ 5,500 | 103 kW (140 PS) @ 5,500 | 95 kW (129 PS) @ 5,500 | 86 kW (115 PS) combined |
| Max torque | 156 Nm @ 4,400 | 320 Nm @ 1,750 | 170 Nm @ 2,000-3,500 | 220 Nm @ 1,500-4,000 | 235 Nm @ 2,000-3,000 | 138 Nm @ 4,400 (engine) |
| Aspiration | Naturally aspirated | Turbocharged (common-rail) | Turbocharged | Turbocharged | Turbocharged | Naturally aspirated |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6d | Euro 6d |
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| 0–100 km/h (0–60 mph) | — | — | — | — | — | — |
| Top speed | — | — | — | — | — | — |
| Drive | Front-wheel drive (ALLGRIP 4WD optional) | Front-wheel drive (ALLGRIP 4WD optional) | Front-wheel drive (ALLGRIP 4WD optional) | Front-wheel drive (ALLGRIP 4WD optional) | Front-wheel drive (ALLGRIP 4WD optional) | Front-wheel drive (ALLGRIP 4WD optional) |
| Transmission | 5-speed manual or 6-speed automatic | 6-speed manual | 5-speed manual or 6-speed automatic | 6-speed manual or 6-speed automatic | 6-speed manual or 6-speed automatic | 6-speed AGS automated manual |
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| Fuel consumption (combined) | — | — | — | — | — | — |
| Urban / extra-urban | — | — | — | — | — | — |
| CO₂ (combined) | — | — | — | — | — | — |
| Fuel tank | 47 liters | 47 liters | 47 liters | 47 liters | 47 liters | 47 liters |
| Drive-by noise | — | — | — | — | — | — |
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| Front brakes | Ventilated discs | Ventilated discs | Ventilated discs | Ventilated discs | Ventilated discs | Ventilated discs |
| Rear brakes | Discs | Discs | Discs | Discs | Discs | Discs |
| Tyre sizes | 215/60 R16 or 215/55 R17 | 215/60 R16 or 215/55 R17 | 215/60 R16 or 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Rim sizes | 6.5J x 16 / 6.5J x 17 | 6.5J x 16 / 6.5J x 17 | 6.5J x 16 / 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Tyre pressures, normal (front / rear) | 215/60 R16 & 215/55 R17: F 2.3 / R 2.3 bar (230 kPa, 33 psi) | 215/60 R16 & 215/55 R17: F 2.3 / R 2.3 bar (230 kPa, 33 psi) | 215/60 R16 & 215/55 R17: F 2.3 / R 2.3 bar (230 kPa, 33 psi) | 215/60 R16 & 215/55 R17: F 2.3 / R 2.3 bar (230 kPa, 33 psi) | 215/60 R16 & 215/55 R17: F 2.3 / R 2.3 bar (230 kPa, 33 psi) | 215/60 R16 & 215/55 R17: F 2.3 / R 2.3 bar (230 kPa, 33 psi) |
| Tyre pressures, laden (front / rear) | Full load: F 2.4 / R 2.8 bar (240 / 280 kPa, 35 / 41 psi); spare T135/90 D16 4.2 bar (60 psi) | Full load: F 2.4 / R 2.8 bar (240 / 280 kPa, 35 / 41 psi); spare T135/90 D16 4.2 bar (60 psi) | Full load: F 2.4 / R 2.8 bar (240 / 280 kPa, 35 / 41 psi); spare T135/90 D16 4.2 bar (60 psi) | Full load: F 2.4 / R 2.8 bar (240 / 280 kPa, 35 / 41 psi); spare T135/90 D16 4.2 bar (60 psi) | Full load: F 2.4 / R 2.8 bar (240 / 280 kPa, 35 / 41 psi); spare T135/90 D16 4.2 bar (60 psi) | Full load: F 2.4 / R 2.8 bar (240 / 280 kPa, 35 / 41 psi); spare T135/90 D16 4.2 bar (60 psi) |
| Wheel-nut torque | — | — | — | — | — | — |
| 1.6 (M16A) petrol · 2015-2018EU | 1.6 DDiS (D16AA) diesel · 2015-2018EU | 1.0 Boosterjet (K10C) 3-cyl turbo · 2018-2020EU | 1.4 Boosterjet (K14C) turbo · 2016-2024EU | 1.4 Boosterjet (K14D) 48V mild hybrid · 2020-2024EU | 1.5 Dualjet (K15C) full hybrid · 2022-2024EU | |
|---|---|---|---|---|---|---|
| Engine oil (with filter) | 5W-30 (API SL/SM/SN/SP, ILSAC GF-3 to GF-6) | Low-SAPS diesel oil (ACEA C2); check your handbook for grade and quantity | 5W-30 (API SL/SM/SN/SP, ILSAC GF-3 to GF-6) | 3.3 L (with filter) · 5W-30 (API SL-SP) | 3.3 L (with filter) · 5W-30 (API SL-SP) | — |
| Coolant | 5.5 L · SUZUKI LLC Super (blue) | SUZUKI LLC Super (blue) | 5.5 L · SUZUKI LLC Super (blue) | 5.5 L · SUZUKI LLC Super (blue) | 5.5 L · SUZUKI LLC Super (blue) | SUZUKI LLC Super (blue) |
| Gearbox oil (manual) | — | — | — | — | — | — |
| 12 V battery | 12V 36 Ah 300 A (cold climate 44 Ah 350 A); stop-start 60 Ah 600 A | 12V 36 Ah 300 A (cold climate 44 Ah 350 A); stop-start 60 Ah 600 A | 12V 36 Ah 300 A (cold climate 44 Ah 350 A); stop-start 60 Ah 600 A | 12V 36 Ah 300 A (cold climate 44 Ah 350 A); stop-start 60 Ah 600 A | 12V 36 Ah starter battery + 48V lithium-ion ISG battery (dealer-only) | 12V starter battery + 140V lithium-ion hybrid drive battery (dealer-only) |
| Air-con refrigerant | — | — | — | — | — | — |
| Spark plugs | DENSO K16HPR-U11 (NGK SILFR6A11 with stop-start) | N/A (diesel — glow plugs fitted) | — | NGK ILZKR7D8 | NGK ILZKR7N8S | — |
| Spark-plug gap | — | — | — | — | — | — |
Sources: Owner's manual · Workshop data. Where an owner’s manual or homologation figure exists it takes precedence; workshop data fills only what those omit.
Suzuki Vitara (LY) at a glance
- Engines: 1.6 M16A petrol (120 PS) and 1.6 DDiS diesel (120 PS) early on; then the 1.0 Boosterjet (111 PS) and 1.4 Boosterjet (140 PS) turbos, the 1.4 48V mild hybrid (K14D, 129 PS), and the 1.5 Dualjet full hybrid (K15C, 115 PS).
- Fuel tank: 47 liters. Engine oil: 5W-30; about 3.3 L with filter on the Boosterjet. Coolant: 5.5 L SUZUKI LLC Super (blue).
- Battery: 12V 36 Ah / 300 A (44 Ah in cold climates); stop-start cars use a 60 Ah / 600 A battery. SHVS adds a dealer-only lithium-ion pack.
- Tires: 215/60 R16 or 215/55 R17.
- Spark plugs: DENSO K16HPR-U11 / NGK SILFR6A11 (1.6), NGK ILZKR7D8 (1.4 Boosterjet), NGK ILZKR7N8S (SHVS).

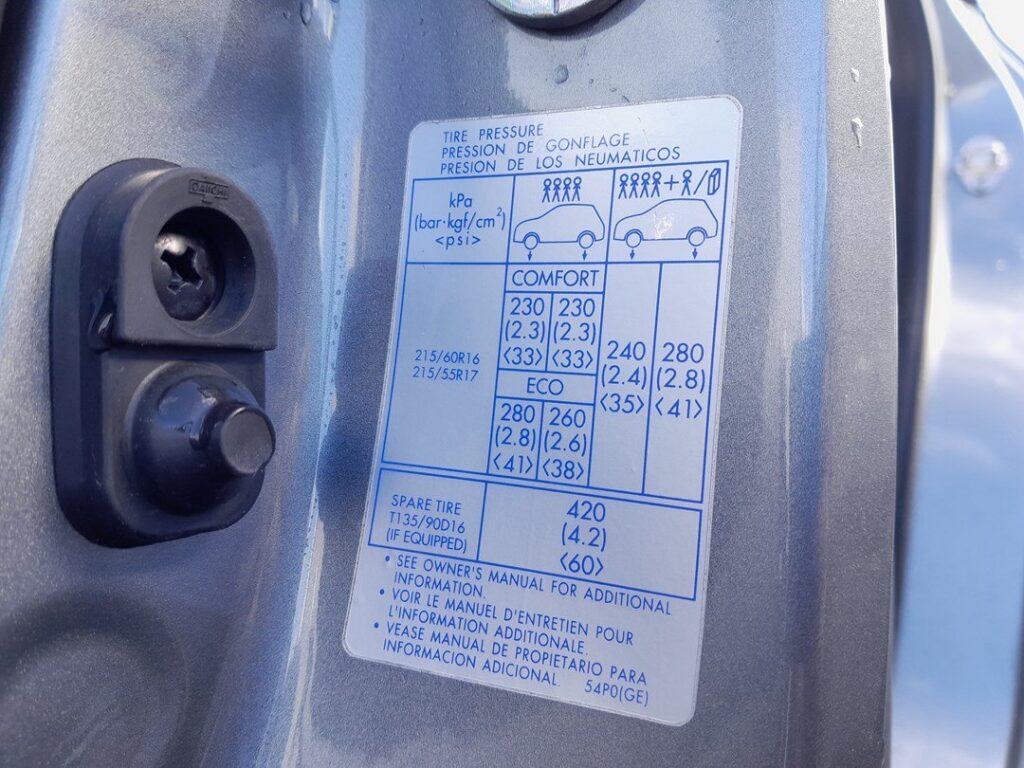

Suzuki Vitara (LY) tire pressures
On the standard 215/60 R16 and 215/55 R17 tires, the cold pressures from the door-pillar placard are the same across the range:
- Normal / comfort: front 2.3 bar, rear 2.3 bar (33 psi).
- Fully loaded: front 2.4 bar (35 psi), rear 2.8 bar (41 psi).
- Eco setting (petrol models, for best economy): front 2.8 bar (41 psi), rear 2.6 bar (38 psi).
- Space-saver spare (T135/90 D16): 4.2 bar (60 psi).
Always set pressures cold, and check the placard on your own car’s driver-side door pillar to confirm.
Frequently asked questions
What tire pressure does a Suzuki Vitara need?
On the standard 215/60 R16 or 215/55 R17 tires, 2.3 bar (33 psi) front and rear cold for normal use, rising to front 2.4 / rear 2.8 bar (35 / 41 psi) when fully loaded.
How much oil does a Suzuki Vitara 1.4 Boosterjet take?
About 3.3 liters with a new filter, to a 5W-30 grade meeting API SL–SP.
What battery does the Suzuki Vitara use?
A 12V battery — 36 Ah / 300 A normally, 44 Ah in cold climates, or 60 Ah / 600 A on stop-start cars. SHVS mild-hybrids also have a separate lithium-ion pack that only a dealer services.
What size is the Vitara fuel tank?
47 liters.
