These instructions apply to the Toyota RAV4 Mk5 (XA50) 2019-Present. For other models, please choose your vehicle here.
Last updated:

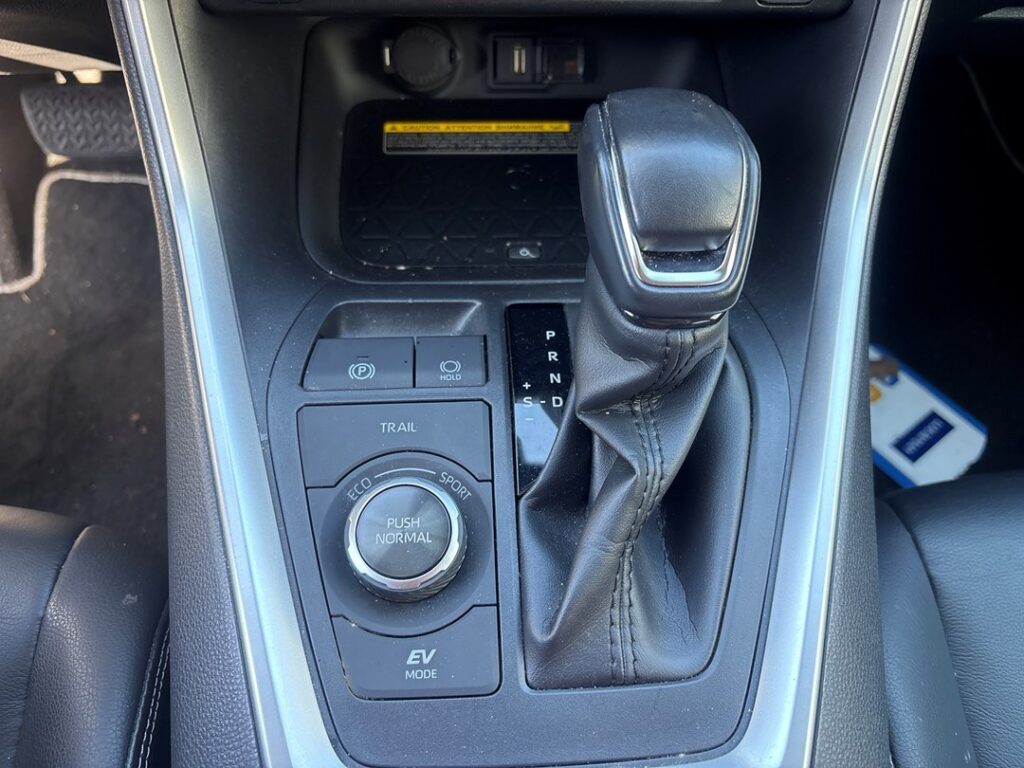

The Toyota RAV4 (Mk5/XA50, 2019–Present) replaces the old foot-pedal parking brake with a true electronic parking brake (EPB): a switch on the centre console and a small electric motor built into each rear caliper. Before you change the rear pads or discs you have to wind those motors fully open and lock them there — that is the job of pad-replacement (maintenance) mode. On the RAV4 this is a tool-led procedure: Toyota’s factory route uses Techstream, and a generic OBD EPB scan tool does the same job. There is no reliable owner button trick, so do not skip the tool.
What pad-replacement mode is and why you need it
Each rear caliper carries a geared electric motor that drives the parking-brake nut against the piston. With the EPB live that nut sits in its applied position, so the piston cannot be pushed back for new, thicker pads. Pad-replacement mode runs the motors to wind the nut fully back inside the cylinder and then disables the EPB so it cannot re-apply while you work. With it active the dash shows a parking-brake warning and the brake will not engage, which is exactly the clearance you need.
Entering EPB service mode on the RAV4 Mk5
Park on level ground, chock a front wheel and switch Brake Hold OFF. The reliable route is a scan tool:
- Plug a Techstream (or a generic OBD2 tool with a Toyota EPB function) into the DLC3 port under the dash and set the ignition to ON.
- Navigate to Chassis → Brake/EPB → Utility → Pad Replacement (EPB Release).
- Follow the prompts; the rear motors run and wind the nuts back. The parking-brake light flashes, then settles, confirming the mode is set.
- Switch off and lift the car. The pistons are now free to be pressed back for the new pads.
Note that entering the mode may log DTC C13A7 — that is expected and is cleared with the tool once the job is finished.
Never force the pistons back by hand
The rule that protects your calipers: never wind or force the EPB pistons back with a clamp, a wind-back tool or by hand while the system is live. The piston is driven by a geared motor; forcing it backwards strips the gearset or burns out the motor — a new caliper, not a cheap fix. Only retract the EPB electronically with the tool. Once pad-replacement mode has wound the nut back, the RAV4’s sliding piston presses in with a normal caliper clamp and light pressure. If it still feels tight, stop and confirm the mode actually took.
Exit and bed-in
With the new pads fitted and the wheels back on, use the tool to close pad-replacement mode and clear any stored EPB code. Then switch the ignition ON, press the brake pedal firmly and apply and release the EPB two or three times with the console switch so the motors re-learn the thicker pads, checking that the brake warning goes out. Finish with a road bed-in: from about 30 mph (50 km/h) brake firmly but not to a stop, repeat eight to ten times with cooling gaps, then confirm the parking brake holds the car on a slope.
Frequently Asked Questions
Does every RAV4 Mk5 have the EPB? Yes — the fifth-generation RAV4, petrol, hybrid and plug-in Prime, uses the console EPB switch with Brake Hold. The previous XA40’s foot-pedal parking brake is gone.
Can I do it without a scan tool? Owners report a manual EPB-switch and ignition-cycle sequence, but it is unreliable on the XA50 and getting it wrong triggers a parking-brake malfunction that needs a tool to clear. A cheap OBD2 EPB tool is the safe route — treat the tool as essential, not optional.
Why did a parking-brake malfunction light come on? Almost always because a caliper was opened or a piston pushed without first setting pad-replacement mode. Re-enter the mode, finish the job and clear the code; if it persists, scan for the stored fault.
Is the hybrid RAV4 different? The EPB hardware is the same. Make sure the car is fully OFF (not in READY) before connecting the tool; the retract-and-relearn steps are identical.
Does the piston wind or press back? On the RAV4 the rear piston presses straight in once the nut is retracted — you do not turn it. Use a clamp, not a wind-back tool, and never force it against a live EPB.
If a warning lamp or stored fault code appears during the job, you can look up what it means on our sister site autodtcs.com.
