These instructions apply to the Toyota RAV4 Mk5 (XA50) 2019-Present.
For other models, please choose your vehicle here.
If the smart key on your Toyota RAV4 Mk5 (XA50, 2019–present) only works with the fob pressed against the door handle, or the dash flashes a low-key warning, the coin cell inside has almost certainly gone flat. This fifth-generation RAV4 — petrol, Hybrid and Plug-in Hybrid alike — uses Toyota’s Smart Key with push-button start: the rounded remote with a lock, unlock and hatch button and a mechanical blade tucked inside. Swapping its battery takes about five minutes and no tools beyond a small screwdriver, and it’s far cheaper than a locksmith. Here is the exact cell, the opening trick, and why a genuinely new key still has to be coded by a dealer.
How to Tell the Fob Battery Is Dying
- Range collapses. You end up standing right at the car, or touching the fob to the handle, to lock or unlock — the classic first symptom of a weak cell.
- “Key battery low” on the multi-information display. The RAV4 shows a low key-battery message in the instrument cluster; it’s a direct prompt to change the cell.
- Push-button start won’t detect the key. If the car only starts when you hold the fob against the start button, the transmitter is running out of power.
- Cold weather makes it worse. A near-flat lithium cell sags in the cold and the fob turns unreliable on frosty mornings, then perks up as it warms.
A RAV4 Smart Key cell typically lasts two to four years. If yours is around that age and misbehaving, fit a fresh battery before you suspect the receiver or the smart-entry system.
The Battery You Need

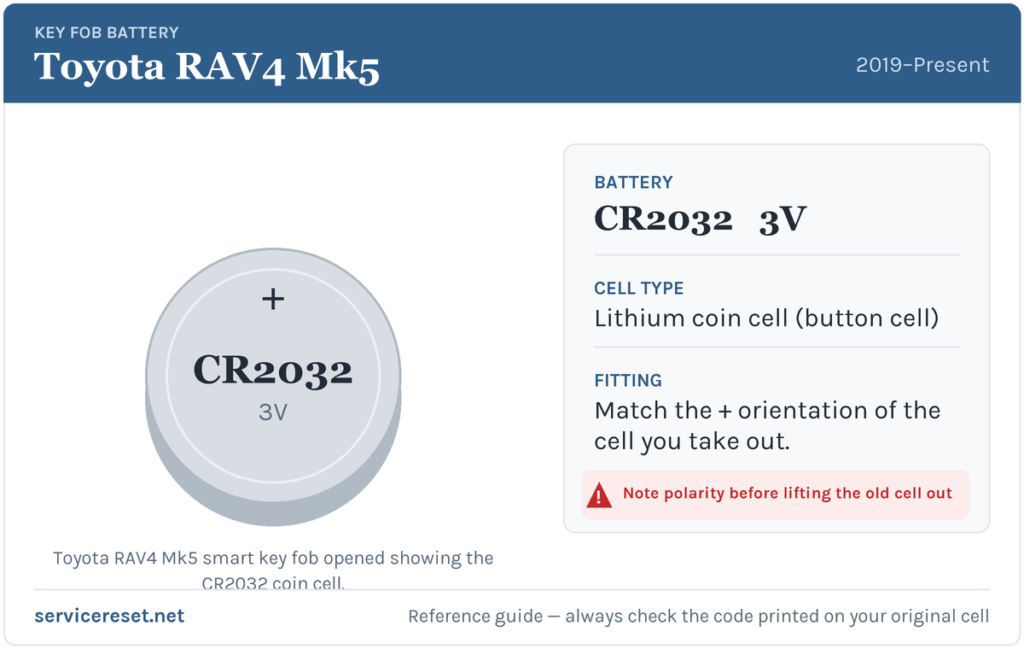

The RAV4 Mk5 Smart Key takes a single CR2032 3-volt lithium coin cell — the common, widely stocked 20 mm coin cell you’ll find in any supermarket or hardware shop. Toyota does use a smaller CR1632 in some of its older or blade-style keys, so it’s worth a two-second check against the cell you pull out, but the XA50 RAV4’s smart fob is a CR2032. Buy a good branded cell; budget batteries sag under the brief high current the transmitter draws and can give short range even fresh from the packet.
How to Change the Battery
- Release the mechanical key. Slide the little latch on the back of the fob and pull the metal emergency blade straight out.
- Split the case. Insert a small flat-blade screwdriver into the slot the blade left behind — or into the seam between the two halves — and twist gently to pop the fob open. Wrapping the tip in tape avoids marking the case.
- Lift the cover. Separate the halves and expose the circuit board and the coin cell in its holder.
- Swap the cell. Note which way the old CR2032 sits, then ease it out. Fit the new cell with the positive (+) side facing up — the orientation marked on the plastic holder inside the fob — handling it by the edges.
- Close it up. Press the two halves together until they click all the way round, then slide the mechanical blade back in until it latches.
⚠️ Get the polarity right. A CR2032 fitted upside down won’t transmit and can slowly discharge against the contacts. The safe habit is to copy the way the old cell was sitting — on this RAV4 that’s positive-side up.
Confirm It Worked
Stand back a few metres and lock, then unlock, the car. Full range should return instantly. Press the start button as usual to confirm keyless detection is working again. Any “key battery low” message clears once the car next reads a healthy fob — often at once, sometimes after a single drive cycle.
If a Fresh Cell Doesn’t Fix It
- Re-check the battery and its way up. Confirm it’s a CR2032, positive-side up, and seated firmly under its contact spring.
- Clean the contacts. Finger grease or a speck of corrosion on the terminals can cause dropouts — wipe them with a dry cloth and keep skin off the new cell.
- Use the emergency start. Hold the fob against the start button as you press it; if the car starts, the transponder is fine and the issue is battery or fob electronics rather than the car.
- Check the car’s 12 V battery. On the RAV4 Hybrid especially, a tired 12 V auxiliary battery can make the smart system slow and imitate a fob fault; have it tested if the car is generally sluggish to wake.
New Key or Spare — Why It’s a Dealer Job
Replacing the coin cell keeps the fob’s existing coding, so nothing needs reprogramming and the key works right away. A replacement or extra Smart Key is different: Toyota’s immobiliser has to be accessed with diagnostic equipment to register the new fob to the car, blanks are ordered against the VIN, and the emergency blade must be cut to the lock. That puts adding a spare or replacing a lost key firmly with a Toyota dealer or a qualified auto-locksmith. Keep the battery in your spare fob fresh too, and a single flat cell can never leave you stuck.
Frequently Asked Questions
What battery does a Toyota RAV4 (2019 onwards) key fob take?
A single CR2032 3-volt lithium coin cell. Some older Toyota keys use a smaller CR1632, so glance at the code on the old cell, but the Mk5 RAV4 Smart Key is a CR2032.
Which way up does the battery go?
Positive (+) side facing up, matching the marking in the fob’s battery holder. If unsure, note the orientation of the old cell before removing it.
Do I need to reprogram the key after a battery change?
No. Swapping the cell doesn’t touch the pairing, so the fob works immediately. Only a brand-new key needs coding to the car.
How long should a RAV4 key battery last?
Usually two to four years. Storing the fob right next to the car, so it constantly wakes the keyless system, shortens that life.
The key still won’t work with a new battery — what now?
Re-check polarity and seating first, then clean the contacts. If the fob still won’t work with a known-good CR2032, the transmitter may have failed — but that’s rare next to a simple flat or upside-down cell.
Can I drive the RAV4 with a dead fob battery?
Yes. Unlock the door with the mechanical blade, then hold the fob against the engine start button while you press it — the transponder still works, so a flat cell won’t leave you stranded.
If the remote failed abruptly right after the 12 V battery was disconnected — rather than fading gradually — suspect the pairing rather than the coin cell, and check any stored fault code first on autodtcs.com.
