These instructions apply to the Toyota Verso Mk1 (AR20) 2009-2018.
For other models, please choose your vehicle here.
The OBD-II diagnostic socket on the Toyota Verso (AR20, 2009–2018) is where a code reader, scan tool or Bluetooth dongle plugs in to talk to the car’s computers. It is the first thing to find when a warning light appears, and on the Verso it is tucked under the dashboard on the driver’s side.
Where to find it

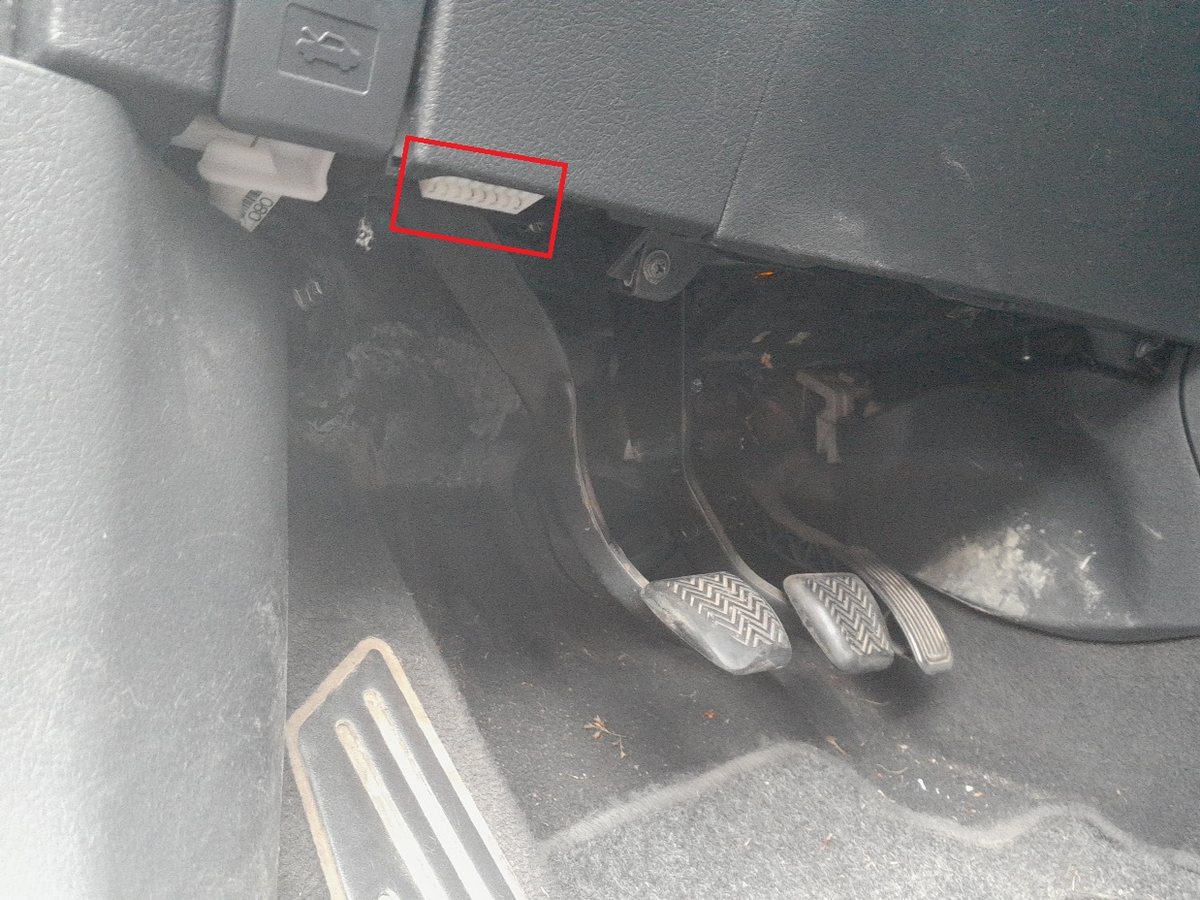

Sit in the driver’s seat and look under the dashboard, above the pedals, in the lower trim to the left of the steering column — near the bonnet-release lever. The 16-pin connector faces downwards in that recess. It is in deep shade, so you will often feel for it before you see it; a torch helps.
Using the port
- Make sure the ignition is off before plugging in.
- Push the scan tool’s plug firmly into the 16-pin socket — it only fits one way.
- Turn the ignition on (engine off) to read and clear codes; start the engine for live sensor data.
- Unplug the tool afterwards — a dongle left in permanently can slowly drain the battery.
What you can do with it
- Read and clear fault codes when the check-engine, ABS or airbag light comes on.
- Watch live data — coolant temperature, fuel trims, sensor values — to trace a running fault.
- Check readiness monitors before an emissions test.
Frequently asked questions
Where is the OBD port on a Toyota Verso?
Under the dashboard on the driver’s side, above the pedals, in the lower trim left of the steering column near the bonnet release. The 16-pin socket faces down.
Does the ignition need to be on to read codes?
Yes — turn the ignition on (engine off) so the modules are powered. For live running data, start the engine.
Which code reader works on a Verso?
Any generic OBD-II / EOBD reader handles engine codes; a Toyota-capable tool is needed for ABS, airbag and body systems.
Will a plugged-in dongle drain my battery?
It can add a small parasitic draw over days. If the Verso is parked for long spells, unplug it.
