Initialize the Power Windows

Last updated: May 17, 2026

The third-generation Kia Rio (UB chassis, 2011–2018) has one-touch up and down on the driver’s window across most trims and on all four windows from 2014 mid-cycle facelift’s mid- and high-spec variants. After a battery disconnection, a window-related fuse change, or any door-module work, the one-touch feature stops and the windows operate only while you hold the switch. Restoring auto operation needs a 30-second per-window procedure — no scan tool, no coding.

Before you start

The Rio UB shares its window architecture with the Hyundai i20 (PB) and the contemporary Kia Picanto TA — the procedure described here, with minor switch-press variations, applies across that platform family. The window controller lives inside each door switch pack; the body control module routes signal but does not own the calibration.

• Battery state of charge. A drop below 11 V during motor inrush is enough to confuse the position encoder. If the car has been sitting, run the engine for 5 minutes first or put the battery on a smart charger overnight.
• All doors closed. Door-ajar inputs reset the BCM’s command window mid-procedure.
• Don’t run the procedure right after door-card refitting unless you’ve confirmed the door’s switch-pack connector has firmly clicked into place. A loose connector lets the window function but the calibration silently fails within a few key cycles.

Tools required

None.

Initialization procedure — driver’s side

1. Switch ignition ON (key to position II — dashboard lights up, starter does not engage).

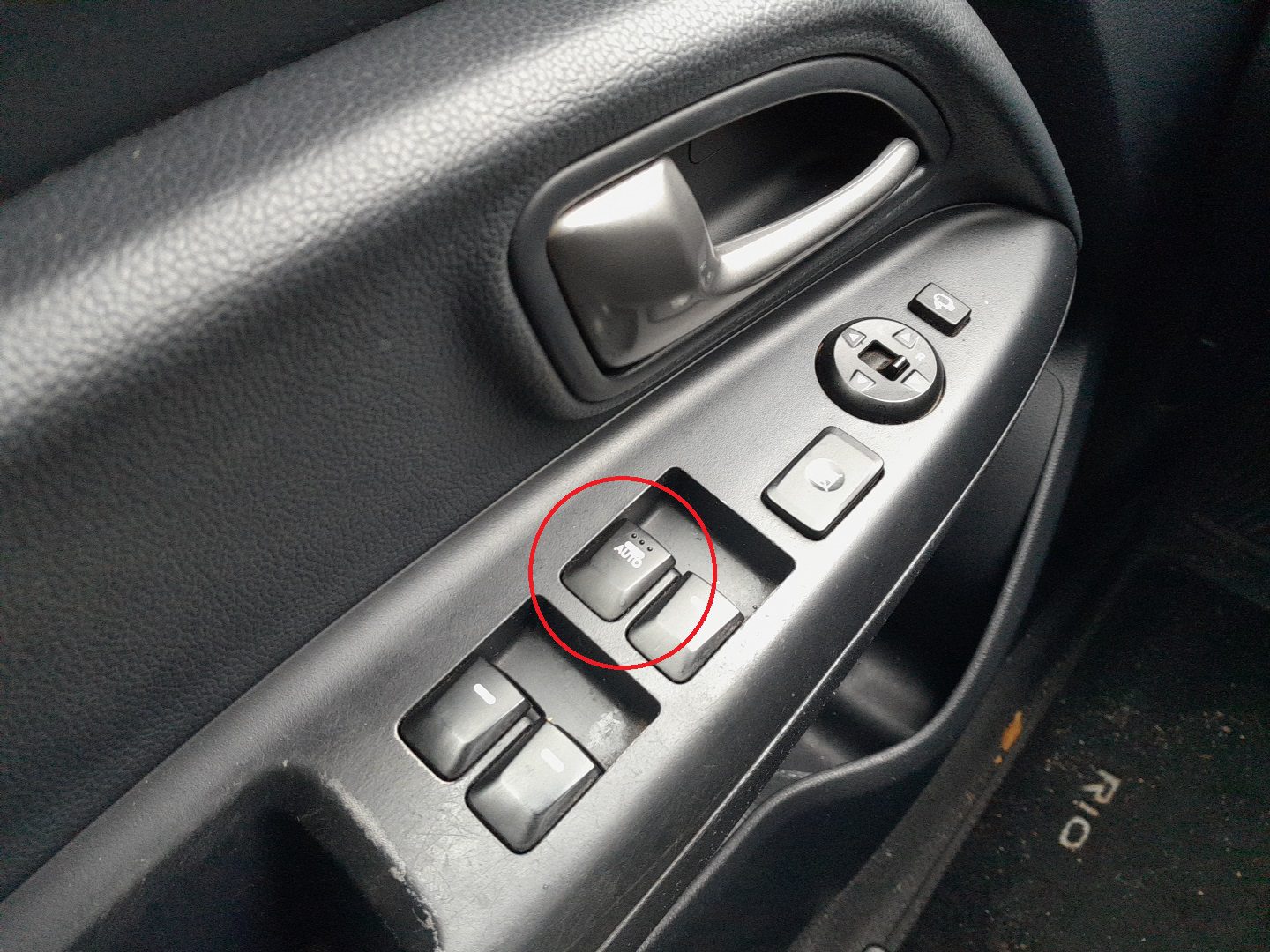

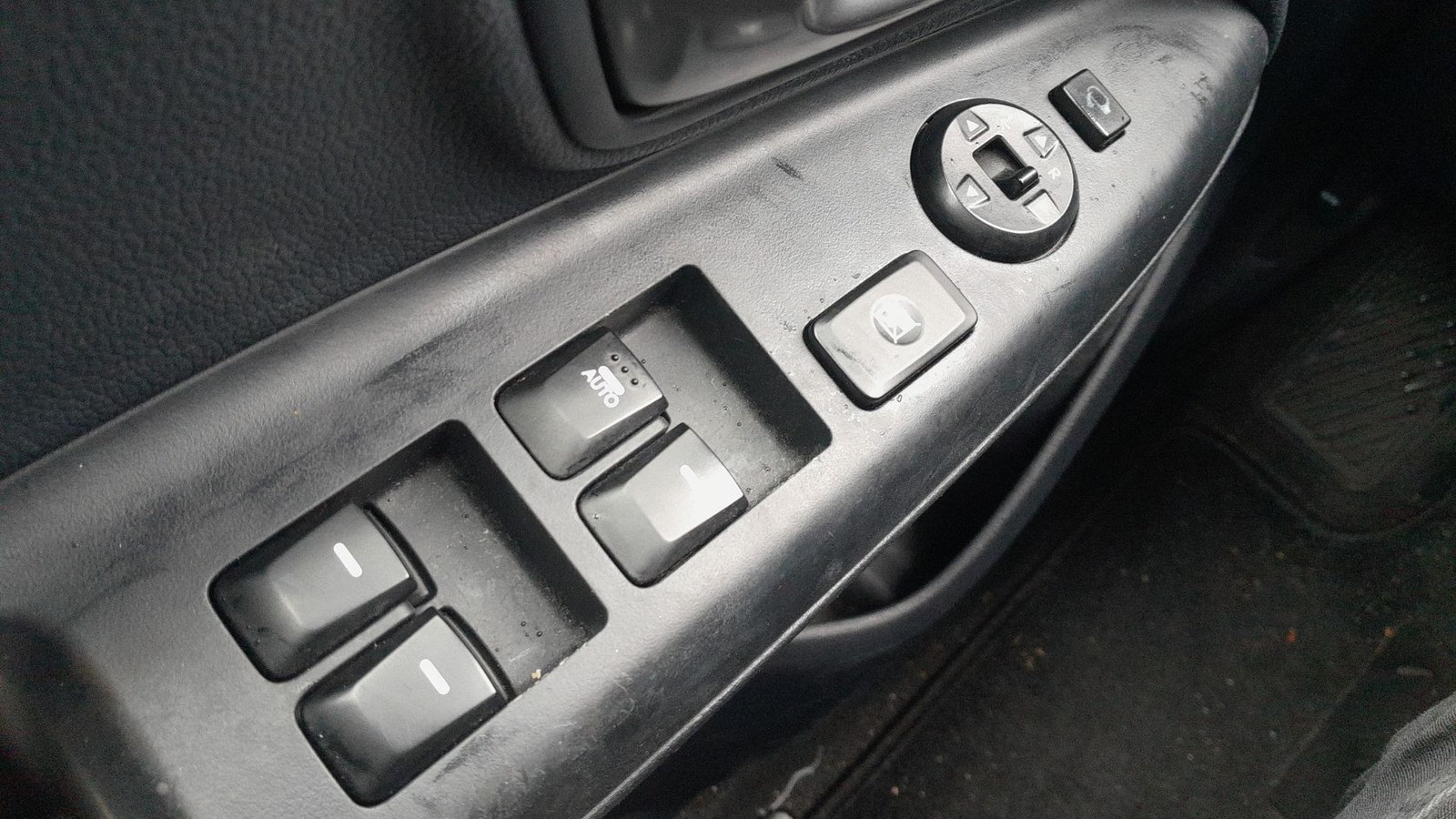

2. Pull the driver’s window switch up and hold to drive the window to fully closed.
3. Continue holding the switch for an additional 1 second after the glass reaches the top seal. This is the calibration trigger: the controller records the position as the upper end-stop.
4. Release the switch.
5. Test one-touch: a brief press should send the window all the way to its end-stop without you holding the switch.

Initialization procedure — passenger and rear windows

On facelift cars with one-touch on all four windows, repeat the procedure from each door’s own switch panel — the driver’s master panel routes signal but does not own the calibration data for the other doors.

1. From the relevant door (door closed), hold up to fully close, then 1 second more.
2. Release. Test one-touch with a brief press.
3. Repeat for each remaining window.

How to verify it has worked

• A brief switch press sends the window all the way to its end-stop without you holding.
• Anti-pinch: place a soft cloth on the top edge of the glass during a close — the window should reverse by 5–10 cm on contact.
• Remote-key global close (if equipped on your trim — typically EX and 4 trim) closes all four windows when you hold the lock button for 3 seconds.

Troubleshooting

The one-touch feature doesn’t return after the procedure. The most common cause is dirt or perished felt in the window channel making the motor pause near the top. Spray silicone lubricant into the rubber channels, cycle the window manually five times to spread it, then re-run the procedure with a 3-second hold instead of 1.

Procedure works on the driver’s window but not on the passenger or rear windows. Each door has its own switch pack that owns the calibration. Run the procedure from each door’s own switch with the door closed — not from the driver’s master.

Anti-pinch is overly sensitive (reverses on any touch). The upper end-stop was captured slightly off the seal. Re-run with a longer hold (3–5 seconds) after the window reaches the top — this lets the controller sample a more precise position.

Window closes one click at a time after the procedure. The controller is in “learning” mode and hasn’t accepted the calibration. Cycle the window fully open and fully closed three more times, holding the switch up for 3 seconds at each close. Usually settles on the third cycle.

One-touch worked yesterday but doesn’t today. Likely temperature: cold weather stiffens the window seals and raises motor current near the top, which the controller misreads as an obstruction. Cycle each window manually a couple of times to warm the rubber, and one-touch usually returns.

Frequently asked questions

Does the procedure work the same on the Kia Rio 4-door saloon as on the 5-door hatchback?
Yes. The window hardware is identical between the two body styles on this generation; only the rear-window glass shape differs, and that’s mechanical, not electronic.

Will the windows still work without initialization?
Yes — they go up and down while you hold the switch. You lose: one-touch in either direction, anti-pinch reverse-by-10cm, and remote-key global close. The car is safe to drive indefinitely without the calibration.

What about Rio 1.1 vs Rio 1.25 vs Rio 1.4 vs Rio 1.4 CRDi?
All engine variants share the same body and window hardware. The procedure is engine-independent.

How often will I need to do this?
Only after a power interruption to the door modules — typically a battery disconnect, a fuse pulled for work elsewhere, or a switch-pack replacement. A normal Rio in normal use will hold its calibration for the life of the car.

Can I retrofit one-touch up to a base trim that came with one-touch down only?
Technically yes, by swapping the door switch pack to a higher-trim part, but the BCM also needs to expect the four-window configuration. In practice it’s not cost-effective. Easier to live without it.
