These instructions apply to the Mazda 6e Mk1 2025-Present.
For other models, please choose your vehicle here.
Like every electric car, the Mazda 6e has a conventional 12-volt lead-acid battery that powers the locks, lights, screens and the systems that wake the car up. If it goes flat the car will not switch on even when the main drive battery is full. This guide covers jump-starting the 12-volt battery, getting into the car when it is dead, and opening the boot in an emergency – all from the official owner’s manual.

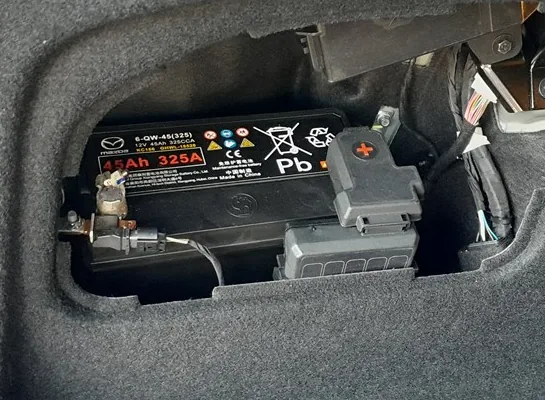

Where is the 12-volt battery?
The 12-volt battery sits on the left side of the trunk (boot), behind a trim panel, rather than under a front hood. On this car it is a 12-volt 45 Ah lead-acid battery (325 A cold-cranking, marked “Pb”). Replacing it is a specialist (dealer) job, not an owner task, but knowing where it is helps when you need to jump-start the car.
How to jump-start the 12-volt battery
You connect to the 6e’s 12-volt battery exactly as you would on any car – never to the high-voltage system. Use only a 12-volt source; a 24-volt supply will cause serious, permanent damage.
- Position the donor 12-volt battery (or vehicle) close to the rear of the 6e without the two cars touching. Apply the parking brake on both and switch off all non-essential electrical loads.
- Make sure the 6e’s charging cable is not connected before you start.
- Connect the first cable from the donor’s positive (+) terminal to the 6e’s positive (+) terminal.
- Connect the second cable from the donor’s negative (-) terminal to a solid, unpainted ground point on the 6e, well away from the battery – not to the battery’s negative post.
- Start the donor car’s engine (or switch on its high-voltage system), then power up the 6e.
- Remove the cables in the reverse order, making sure the clamps never touch each other or bare metal.
If the 12-volt battery keeps going flat, have it and the charging system checked – repeated discharge shortens a lead-acid battery’s life.
Can the Mazda 6e jump-start another car?
No. The owner’s manual specifically says not to use the 6e as a donor vehicle to start another car.
How to get in when the 12-volt battery or fob is dead
The 6e has a hidden mechanical lock behind the driver’s door handle. Press the handle at the marked thumb point so the keyhole is exposed, insert the auxiliary (emergency) key supplied with the car, and turn it clockwise to unlock. Two auxiliary keys come with the car as a backup.
If the key fob battery is weak but the car still has power, you can still start it: place the fob in the cupholder of the center armrest and press the brake pedal to switch the car on.
How to open the boot in an emergency
If the tailgate will not open electrically, fold down the rear seats and reach the lock from inside the luggage area. Remove the cover on the inside of the tailgate trim, then push the lock-cylinder lever in the arrow direction while lifting the tailgate. If power was lost suddenly during locking, tilt the green locking rod to the left, then push the white locking rod down to release.
Frequently asked questions
Can you jump-start an electric Mazda 6e?
Yes – you jump its 12-volt battery, not the main drive battery, following the normal car procedure. Use only a 12-volt supply and connect the final clamp to a chassis ground, not the battery’s negative post.
Why won’t my 6e turn on even though it has charge?
If the separate 12-volt battery is flat, the car cannot wake up even with a full drive battery. Jump-start or recharge the 12-volt battery to restore power. Leaving accessories on while the car is not in the READY state is a common cause of a flat 12-volt battery.
Does unlocking with the emergency key open the charge flap?
No. If you unlock the car with the mechanical key, the charge flap stays locked – use the fob or power the car up to release it.
