These instructions apply to the Suzuki Alto Mk7 (GF) 2009-2014.
For other models, please choose your vehicle here.
Verified specifications for the Suzuki Alto (GF, 2009-2014), which uses a single 1.0 K10B petrol engine and is mechanically identical to the Nissan Pixo. Figures come from manufacturer and workshop data; blank cells are values we have not independently confirmed.

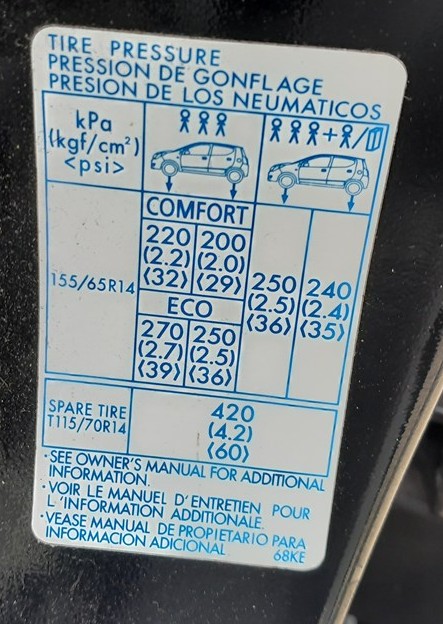

The door-pillar placard (155/65 R14) – COMFORT and ECO cold pressures in kPa, bar and psi, plus the spare (LHD car shown).
Each column is one specific vehicle — a single engine or motor and, where shown, body style. Dimensions and several weights are specific to that body and drivetrain; other body or powertrain versions differ, so match the column to your own vehicle.
Dimensions
1.0 (K10B) PetrolEU
Length
3,500 mm
Width (excl. mirrors)
1,600 mm
Height
1,470 mm
Wheelbase
2,360 mm
Track (front / rear)
1,405 / 1,400 mm
Weights & towing
1.0 (K10B) PetrolEU
Kerb weight
930 kg
Gross vehicle weight
1,250 kg
Payload (approx.)
320 kg
Max axle load, front
700 kg
Max axle load, rear
650 kg
Towing (braked trailer)
200
Engine
1.0 (K10B) PetrolEU
Engine code
K10B
Fuel
Petrol
Cylinders / layout
3, in line
Displacement
996 cc
Max power
50 kW (68 PS)
Max torque
90 Nm
Aspiration
Naturally aspirated
Emission standard
Euro 5
Performance
1.0 (K10B) PetrolEU
0–100 km/h (0–60 mph)
—
Top speed
155 km/h
Drive
Front-wheel drive
Transmission
5-speed manual or 4-speed automatic
Economy & emissions
1.0 (K10B) PetrolEU
Fuel consumption (combined)
4.3 l/100km (NEDC)
Urban / extra-urban
—
CO₂ (combined)
99 g/km (NEDC)
Fuel tank
35 L
Drive-by noise
69.3 dB(A)
Chassis, brakes & tyres
1.0 (K10B) PetrolEU
Front brakes
—
Rear brakes
—
Tyre sizes
155/65 R14
Rim sizes
4.5J x 14
Tyre pressures, normal (front / rear)
155/65 R14 (up to 3 occupants): 2.2 bar / 32 psi front, 2.0 bar / 29 psi rear (comfort) · eco: 2.7 bar / 39 psi front, 2.5 bar / 36 psi rear
Tyre pressures, laden (front / rear)
Full load: 2.5 bar / 36 psi front, 2.4 bar / 35 psi rear · compact spare (T115/70 R14) 4.2 bar / 60 psi
Wheel-nut torque
—†
Capacities & service
1.0 (K10B) PetrolEU
Engine oil (with filter)
2.9 L · 0W-20 (API SM)
Coolant
4.3 L (manual) / 4.2 L (auto) · Suzuki LLC Super (blue)
Gearbox oil (manual)
75W-80 API GL-4, 2.2 L (manual)
12 V battery
35 Ah, engine compartment
Air-con refrigerant
—†
Spark plugs
—
Spark-plug gap
—†
Sources: Homologation (Certificate of Conformity) · Owner's manual · Workshop data. Where an owner’s manual or homologation figure exists it takes precedence; workshop data fills only what those omit. † A safety-critical figure (wheel-nut torque, spark-plug gap or A/C refrigerant) is shown only when an OEM manual or factory service manual confirms it — otherwise it is withheld; always use the official figures for your car.
The pressures above are for the 155/65 R14 fitment read from this car’s door-pillar placard. Always confirm against the label on your own Alto.
